CAD drafting Weblight 0    Ribbon: View – Render – Create Light > CAD software Weblight 1 Web Light

CAD drawing Weblight 2    Menu: View – Render – Light > CAD drafting Weblight 3 New Web Light

CAD software Weblight 4    Toolbar: Lights – CAD drawing Weblight 5

CAD drafting Weblight 6 Command line: WEBLIGHT

Creates an accurate 3D representation of light intensity distribution for the light source.


Command prompts:

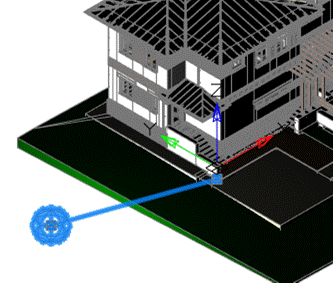

Set the light source location:

Define the point of the light source location.

Set the target location:

Define the point of the target location – the point to which the light flux will be directed.

Enter the name of the modified mode or [Name/Intensity/Status/Photometry/Web/Attenuation/Color/Exit]:

Define the command options, if necessary, otherwise just press Enter.


Command options:


Name of the light source.


Brightness of the light: from 0 to the maximum value supported. By default, is equal to 1.


Status of the light source: turned on/off. The disabled light source stops lighting.


Photometry is the measurement of the luminous intensities of visible light sources.

·         Intensity of light in photometry is the measurement of perceived power emitted by a light source in a particular direction.

·         Flux – perceived power.

·         Illuminance – the general light flux per surface per area unit.

·         Color – color of light given by this source

·         Color name – lamp color name from the list of standard colors.

·         ? – displays the list of color names.

·         Kelvin – Kelvin color temperature value (min:1000 - max:20000).

The option is available only if values 1 or 2 are set for the LIGHTINGUNITS system variable.


Specifies the light intensity at points on a spherical grid.

·         File – specifies the file with .ies extension, which should be used to define the properties of the web.

·         X – specifies the X rotation for the web.

·         Y – specifies the Y rotation for the web.

·         Z – specifies the Z rotation for the web.


Diminishing the light intensity (brightness) over distance from the light source.

Attenuation type:

·         None – sets no attenuation. Objects that are both far and close to the light source are illuminated equally.

·         Inverse linear – sets attenuation value to be the inverse of the linear distance from the light to the object. By default, the intensity at inverse linear is half the maximum intensity.

·         Inverse squared – sets attenuation value to be the inverse of square of the distance from the light to the object.

Use limits – Turns on and off the attenuation limits.

·         Attenuation start limit – specifies the point where light starts as an offset from the center of the light. By default, is determine as 0.

·         Attenuation end limit – specifies the point the light ends as an offset from the center of the light. No light is cast beyond this point.

Impact of this option is not taken into account if the value of LIGHTINGUNITS system variable is different from 0.


Color of light given by this source.

·         R,G,B – colors in accordance with RGB color model.

·         Color index – nanoCAD color index.

·         H,S,L – colors according to HSL color model.


Exits the command.
