Explode primitives

Main menu: Mechanical - Edit >Explode All Primitives.

Ribbon: Mechanical - Utilities >Explode All Primitives.

Toolbar: Edit>Explode All Primitives.

Command line: MCEXPLODEPSEUDO, EXPLODEPSEUDO.

Explodes Primitives and Pseudo-Primitives that are generated when nanoCAD graphics are overlapped by objects nanoCAD Mechanica.

Procedure

1. Call the command.

2. Confirm the layout of the primitives.

3. The primitives will be broken.

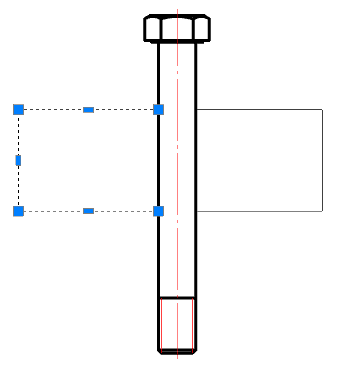

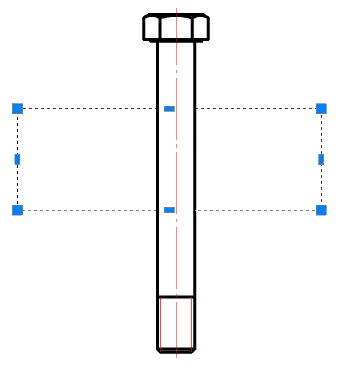

Before	After
