Scale List

In most cases, drawings are printed at an accurate scale.

When printing a model space, the plot scale is set in the Plot dialog box. This scale determines the ratio of the unit of length in the printed drawing to the real unit used in creation of the drawing.

When printing one of layout tabs, the scale is applied to the model itself displayed in the layout viewports. It defines, for each viewport, the ratio of the paper format dimensions to the model dimensions in the viewport.

Standard scales are available from the list of scales in the corresponding nanoCAD tools:

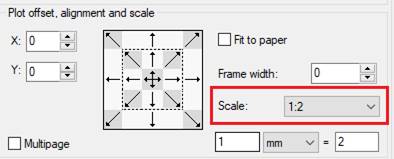

In the Plot dialog box:

CAD drafting Scale List 0

For a selected or active viewport:

·         in the status bar

CAD software Scale List 1

·         in the Properties toolbar.


The list of scales is managed in the Edit drawing scales dialog box

CAD drawing Scale List 2    Ribbon: Annotate – Annotation scaling > CAD drafting Scale List 3 Scale List

CAD software Scale List 4    Menu: Format – CAD drawing Scale List 5 Scale List Edit…

CAD drafting Scale List 6 Command line: SCALELISTEDIT

CAD software Scale List 7 Non-dialog mode: -SCALELISTEDIT

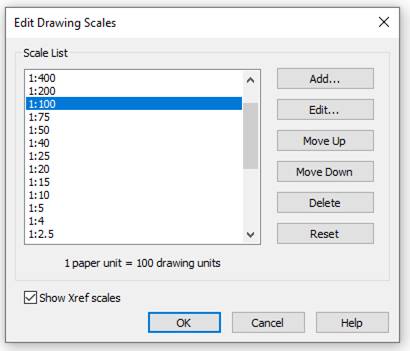

In the dialog, you can add new scales, edit the existing ones, rebuild the scale list and delete unnecessary ones.

CAD drawing Scale List 8


Scale list

Displays the content of the current scale list.

CAD drafting Scale List 9

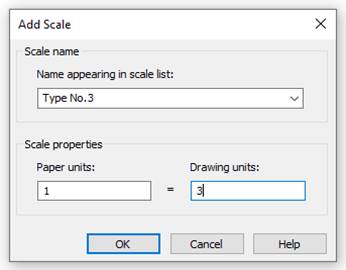

Opens the Add Scale dialog box to create a new scale. The dialog box sets the following parameters:

Scale name to be displayed in the Scale list.

Scale properties – ratio of paper units to drawing units.

CAD software Scale List 10

CAD drawing Scale List 11

Opens the Edit scale dialog box to edit parameters of the selected scale.

CAD drafting Scale List 12

Moves the selected scale one position up or down in the list.

CAD software Scale List 13

Deletes the scale selected in the list.

CAD drawing Scale List 14

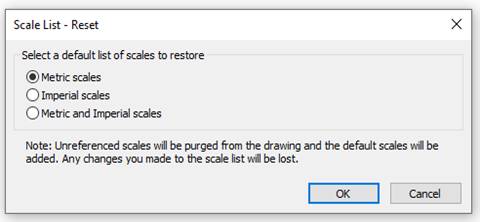

Deletes all custom and unused scales and restores the standard scale list. In the Reset dialog box, select the scale list to be restored.

CAD drafting Scale List 15

Show xref scales

Enables the display of scales contained in external references and different from the document scales in the scale list.

The xref scales are also available for editing.

To display the standard scales in certain units of measurement in the list, press Reset button, in the Scale List dialog box select to restore the list of scales in required units.
