Work with LISP-Applications

Work with LISP-Applications

CAD drafting Work with LISP-Applications 0       Ribbon: Manage – Applications - Scripts > CAD software Work with LISP-Applications 1 Lisp

CAD drawing Work with LISP-Applications 2       Menu: Tools – Scripts > CAD drafting Work with LISP-Applications 3 Lisp

CAD software Work with LISP-Applications 4 Command line: LSP

After starting the command, select the necessary option in the command line.

Options:

COmmands
Functions
Variables

Outputs the commands, LISP variables and loaded LISP-applications to the command line.

Load

Allows to load LISP-file with lsp or mnl extension by entering whole path of the file and its extension.

Execute

Allows to execute one of the functions lsp or mnl file, that was loaded by using the Load option.

Console

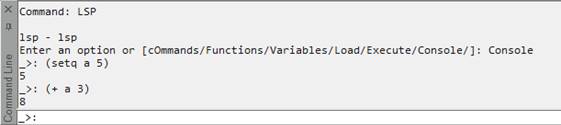

Converts nanoCAD command line to the LISP console mode. In this case, the command prompt changes to _>:

CAD drawing Work with LISP-Applications 5

In the nanoCAD, entered function can be performed in the Console mode.

To exit the LISP-console mode, enter (quit) or (exit).
