Main menu: Mechanical - Symbols - Views, Sections >View.

Ribbon: Mechanical - Symbols >View.

Toolbar: View (toolbar " Symbols").

Command line: MCVIEW.

Procedure

1. Call command;

2. Specify the insertion point of view;

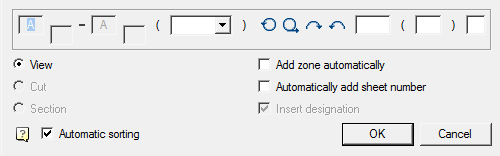

3. Specify the direction of the view arrow. A dialog box appears "View";

4. In the dialog "View" enter your settings. Press button "OK";

5. Place the view symbol in the drawing.

Note:

When you transfer the designation by means of nanoCAD, the integrity of the data in terms of specifying the mutual location and specifying the zones of the drawing can be violated. In this case, you must run the "Update" command.

Editing

Editing is done by double-clicking the LMB on any element of the symbol. This opens a dialog box "Views, cuts, sections", where you can change the required parameters.
