Viewports of Model Space

Model space can be separated into several rectangular non-overlapping areas called viewports (VP).

Non-overlapping areas fill in model space and cannot be placed over each other. When starting a project, usually one viewport, filling in all the model space is used. This viewport can be separated into several viewports and different fragments of the drawing, or model views can be displayed on every viewport at the same time. The changes made in one viewport are also shown in the whole drawing (in other viewports).

You can switch between viewports (transition from one viewport to another) at any time, even whilst a command is being performed. The cursor is displayed in the current viewport – the common arrowhead is displayed in all the other viewports. To switch to another viewport, click at any point on the screen.  To cycle through viewports, you can use the CYCLEVIEWPORTS command or the CTRL+R hotkeys.

For every viewport you can specify the display scale, pan the viewport image independently of the other viewports, specify UCS and display the modes of grid and snap usage. You can save the setting parameters of any viewports to use them again and restore an image of any viewport.

Only one non-overlapping viewport can be printed.

Configuration of non-overlapping viewports can be different:

1 Viewport

CAD drafting Viewports of Model Space 0        Ribbon: View – Model Viewports – Viewport Configuration > CAD software Viewports of Model Space 1 Single

CAD drawing Viewports of Model Space 2       Menu: View – ViewPort > CAD drafting Viewports of Model Space 3 1 Viewport

CAD software Viewports of Model Space 4       Toolbar: ViewPorts > CAD drawing Viewports of Model Space 5

CAD drafting Viewports of Model Space 6        Document tab context menu: CAD software Viewports of Model Space 7 1 Viewport

CAD drawing Viewports of Model Space 8 Command line: VIEWPORT_SINGLE

In Model Space: restores the configuration to one viewport (the view is taken from the last active window).

In Paper Space: creates one viewport.

2 Viewports Vertical

CAD drafting Viewports of Model Space 9        Ribbon: View – Model Viewports – Viewport Configuration > CAD software Viewports of Model Space 10 Two: Vertical

CAD drawing Viewports of Model Space 11       Menu: View – ViewPort > CAD drafting Viewports of Model Space 12 2 Viewports Vertical

CAD software Viewports of Model Space 13       Toolbar: ViewPorts > CAD drawing Viewports of Model Space 14

CAD drafting Viewports of Model Space 15        Document tab context menu: CAD software Viewports of Model Space 16 2 Viewports Vertical

CAD drawing Viewports of Model Space 17 Command line: SPLITVIEWPORT_VERTICAL

Creates a configuration of two vertical viewports.

2 Viewports Horizontal

CAD drafting Viewports of Model Space 18        Ribbon: View – Model Viewports – Viewport Configuration > CAD software Viewports of Model Space 19 Two: Horizontal

CAD drawing Viewports of Model Space 20       Menu: View – ViewPort > CAD drafting Viewports of Model Space 21 2 Viewports Horizontal

CAD software Viewports of Model Space 22       Toolbar: ViewPorts > CAD drawing Viewports of Model Space 23

CAD drafting Viewports of Model Space 24        Document tab context menu: CAD software Viewports of Model Space 25 2 Viewports Horizontal

CAD drawing Viewports of Model Space 26 Command line: SPLITVIEWPORT_HORIZONTAL

Creates a configuration of two horizontal viewports.



3 Viewports

CAD drafting Viewports of Model Space 27 Command line: SPLITVIEWPORT_3

Creates a configuration of three viewports.

After starting the command, there is a prompt in the command line:

Enter an option [Horizontal/Vertical/Left/Right/Top/Bottom]<Right>

Command options:

Horizontal

Creates a configuration of three horizontally placed viewports.

Vertical

Creates a configuration of three vertically placed viewports.

Left

Creates a configuration of three viewports, one of which is placed to the left and the others – to the right.

Right

Creates a configuration of three viewports, one of which is placed to the right and the others – to the left.

Top

Creates a configuration of three viewports, one of which is placed at the top and the others – at the bottom.

Bottom

Creates a configuration of three viewports, one of which is placed at the bottom and the others – at the top.

3 Viewports Horizontal

CAD software Viewports of Model Space 28        Ribbon: ViewModel ViewportsViewport Configuration > CAD drawing Viewports of Model Space 29 Three Viewports Horizontal

CAD drafting Viewports of Model Space 30        Menu: ViewViewports > CAD software Viewports of Model Space 31 3 Viewports Horizontal

CAD drawing Viewports of Model Space 32        Toolbar: ViewportsCAD drafting Viewports of Model Space 33

CAD software Viewports of Model Space 34        Document tab context menu: CAD drawing Viewports of Model Space 35 3 Viewports Horizontal

CAD drafting Viewports of Model Space 36        Command line: SPLITVIEWPORT_3_HORIZONTAL

Creates a configuration of three horizontal viewports.

3 Viewports Vertical

CAD software Viewports of Model Space 37        Ribbon: ViewModel ViewportsViewport Configuration > CAD drawing Viewports of Model Space 38 Three Viewports Vertical

CAD drafting Viewports of Model Space 39        Menu: ViewViewports > CAD software Viewports of Model Space 40 3 Viewports Vertical

CAD drawing Viewports of Model Space 41        Toolbar: ViewportsCAD drafting Viewports of Model Space 42

CAD software Viewports of Model Space 43        Document tab context menu: CAD drawing Viewports of Model Space 44 3 Viewports Vertical

CAD drafting Viewports of Model Space 45        Command line: SPLITVIEWPORT_3_VERTICAL

Creates a configuration of three vertical viewports.

3 Viewports Left

CAD software Viewports of Model Space 46        Ribbon: ViewModel ViewportsViewport Configuration > CAD drawing Viewports of Model Space 47 Three Viewports Left

CAD drafting Viewports of Model Space 48        Menu: ViewViewports > CAD software Viewports of Model Space 49 3 Viewports Left

CAD drawing Viewports of Model Space 50        Toolbar: ViewportsCAD drafting Viewports of Model Space 51

CAD software Viewports of Model Space 52        Document tab context menu: CAD drawing Viewports of Model Space 53 3 Viewports Left

CAD drafting Viewports of Model Space 54        Command line: SPLITVIEWPORT_3_LEFT

Creates a configuration of three viewports, one on the left and two on the right.

3 Viewports Right

CAD software Viewports of Model Space 55        Ribbon: ViewModel ViewportsViewport Configuration > CAD drawing Viewports of Model Space 56 Three Viewports Right

CAD drafting Viewports of Model Space 57        Menu: ViewViewports > CAD software Viewports of Model Space 58 3 Viewports Right

CAD drawing Viewports of Model Space 59        Toolbar: ViewportsCAD drafting Viewports of Model Space 60

CAD software Viewports of Model Space 61        Document tab context menu: CAD drawing Viewports of Model Space 62 3 Viewports Right

CAD drafting Viewports of Model Space 63        Command line: SPLITVIEWPORT_3_RIGHT

Creates a configuration of three viewports, one of which is located on the right, and two on the left.

3 Viewports Top

CAD software Viewports of Model Space 64        Ribbon: ViewModel ViewportsViewport Configuration > CAD drawing Viewports of Model Space 65 Three Viewports Top

CAD drafting Viewports of Model Space 66        Menu: ViewViewports > CAD software Viewports of Model Space 67 3 Viewports Top

CAD drawing Viewports of Model Space 68        Toolbar: ViewportsCAD drafting Viewports of Model Space 69

CAD software Viewports of Model Space 70        Document tab context menu: CAD drawing Viewports of Model Space 71 3 Viewports Above

CAD drafting Viewports of Model Space 72        Command line: SPLITVIEWPORT_3_ABOVE

Creates a configuration of three viewports, one at the top and two at the bottom.

3 Viewports Bottom

CAD software Viewports of Model Space 73        Ribbon: ViewModel ViewportViewport Configuration > CAD drawing Viewports of Model Space 74 Three Viewports Bottom

CAD drafting Viewports of Model Space 75        Menu: ViewViewports > CAD software Viewports of Model Space 76 3 Viewports Bottom

CAD drawing Viewports of Model Space 77        Toolbar: ViewportsCAD drafting Viewports of Model Space 78

CAD software Viewports of Model Space 79        Document tab context menu: CAD drawing Viewports of Model Space 80 3 Viewports Below

CAD drafting Viewports of Model Space 81        Command line: SPLITVIEWPORT_3_BELOW

Creates a configuration of three viewports, one at the bottom and two at the top.



4 Viewports

CAD software Viewports of Model Space 82        Ribbon: View – Model Viewports – Viewport Configuration > CAD drawing Viewports of Model Space 83 Four: Equal

CAD drafting Viewports of Model Space 84       Menu: View – ViewPort > CAD software Viewports of Model Space 85 4 Viewports

CAD drawing Viewports of Model Space 86       Toolbar: ViewPorts > CAD drafting Viewports of Model Space 87

CAD software Viewports of Model Space 88        Document tab context menu: CAD drawing Viewports of Model Space 89 4 Viewports

CAD drafting Viewports of Model Space 90 Command line: SPLITVIEWPORT_4

Creates a configuration of four similar viewports.

Named Viewports

CAD software Viewports of Model Space 91        Ribbon: View – Model Viewports –> CAD drawing Viewports of Model Space 92 Named

CAD drafting Viewports of Model Space 93       Menu: View – Viewports > CAD software Viewports of Model Space 94 Named Viewports

CAD drawing Viewports of Model Space 95        Toolbar: ViewPorts – CAD drafting Viewports of Model Space 96  Viewports

CAD software Viewports of Model Space 97        Toolbar: Layout – CAD drawing Viewports of Model Space 98 Viewports

CAD drafting Viewports of Model Space 99 Command line: VIEWPORTS, VPORTS

The command opens the Viewports dialog box.

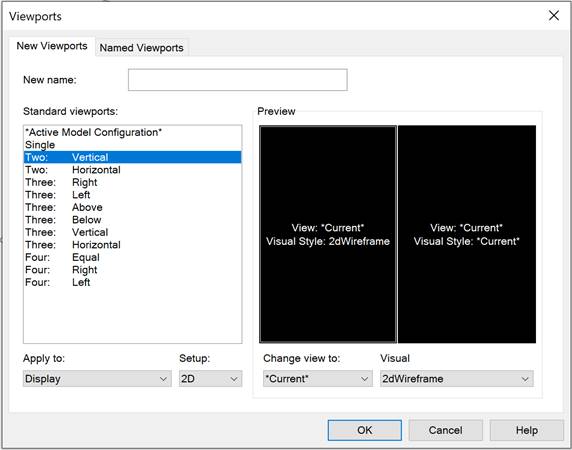

On the New Viewports tab you can create the required configuration of viewports on the standard base and save it for further usage:

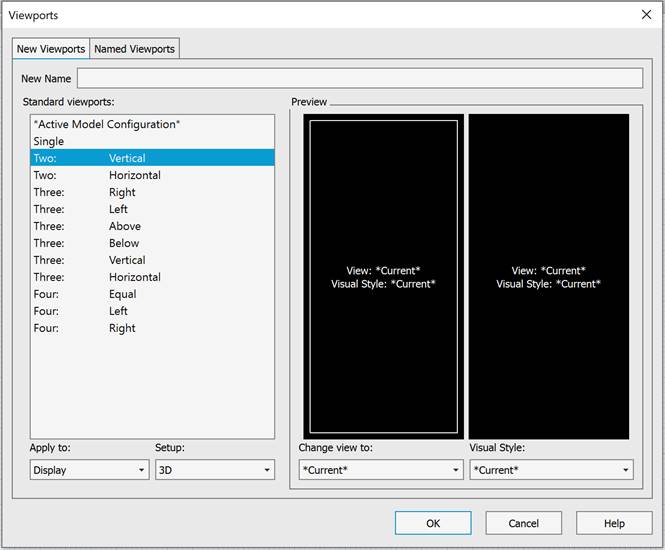

CAD software Viewports of Model Space 100

Parameters:

Parameters

Description

New name:

Name of the saved configuration of viewports.

Standard viewports:

List of standard configurations of viewports.

Apply to:

Display – applies the selected configuration of viewports to the whole Model Space.

Current viewport – applies the selected configuration of viewports to the current viewport

Setup:

2D – sets the selected configuration as the current viewport for all viewports.

3D – sets the selected configuration of standard model views for all viewports.

Preview

Preview of the selected configuration of viewports.

The current viewport is shown with a double frame.

Change view to:

Changes the view of the common viewport.

There are existing named views of the drawing in the drop-down list (there are additional standard model views for 3D mode).

Visual style:

Changes the visual style of the selected viewport.

The available styles in the drop-down list are:

·         *Current*

·         2D Wireframe

·         Conceptual

·         Realistic

·         Wireframe

·         Hidden

·         Shades of Gray

·         Sketchy

·         X-ray

·         Shaded with edges

·         Shaded

·         Monochrome

To change a view or a visual style for a viewport:

1.      Double click to select the viewport in the Preview window (selected object is shown with double frame).

2.      Select the required view or visual style from the drop-down list.

If a name was specified during the creation of the configuration of the viewports, the configuration will be saved as a named configuration. A named configuration of viewports can be used without preset.

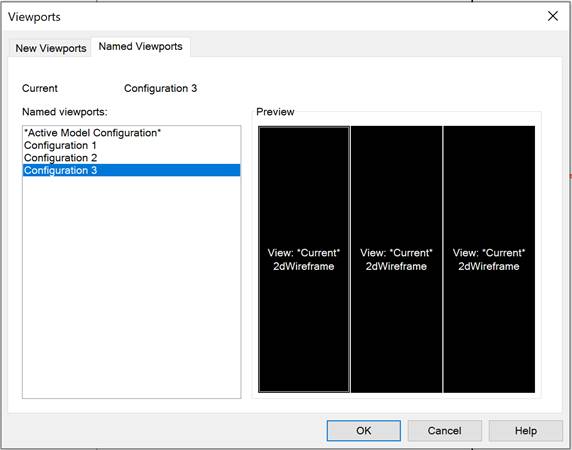

The list of created and saved configurations is shown on the Named Viewports tab:

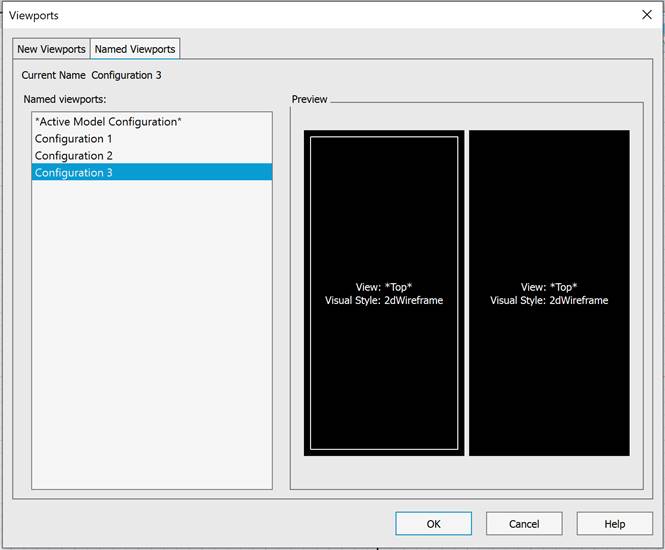

CAD drawing Viewports of Model Space 101

To create a configurations of viewports:

1.      Select a standard configuration in the New Viewports tab.

2.      In the New name enter a configuration name.

3.      Select OK.

The name of the created configuration is shown in the Named viewports section of the Named Viewports tab when the Viewports dialog is opened next time.

The Save Configuration command from the View>Viewports menu allows a name to be specified in the command line for the current configuration of viewports.

To restore a configuration of viewports:

1.      Select the required configuration in the Named viewports list (after selection, a list of viewports will be selected in the Preview window).

2.      Select OK.

Or:

IDH_RestoreViewportCFG

1.      Start the Restore Configuration command (the View>Viewports).

2.      In the command line, type the configuration name as an answer to the prompt Enter viewport configuration name: (the list of available configurations is shown in the command line’s protocol).

3.      Press ENTER to finish the command.

To rename a configuration of viewports:

1.      Select the required configuration in the Named viewports list (after selection, a list of viewports will be selected in the Preview window).

2.      Select the Rename option from the context menu.

3.      Enter a new configuration name.

4.      Press ENTER or click on any place of the section except the renaming field to finish the command.

5.      Select OK.

To delete a configuration of viewports:

1.       Select the required configuration in the Named viewports list (after selection, a list of viewports will be selected in the Preview window).

2.      Select the Delete option from the context menu.

3.      Select OK.

Or:

IDH_DeleteViewportCFG

1.      Start the Delete Configuration command (the View>Viewports).

2.      In the command line, type the configuration name as an answer to the prompt Enter viewport configuration name: (the list of available configurations is shown in the command line’s protocol).

3.      Press ENTER to finish the command.
