Transparency of Raster Images Background

CAD drafting Transparency of Raster Images Background 0 Ribbon: Raster – Visualisation > CAD software Transparency of Raster Images Background 1 Transparency

CAD drawing Transparency of Raster Images Background 2 Menu: Raster – CAD drafting Transparency of Raster Images Background 3 Transparency

CAD software Transparency of Raster Images Background 4 Command line: TRANSPARENCY

Changing the transparency of raster images background on the screen.

CAD drawing Transparency of Raster Images Background 5 CAD drafting Transparency of Raster Images Background 6

The command allows you to switch the transparency of the background pixels of bitonal raster images (for example, TIF format), as well as the alpha channel pixels of color images (for example, PNG format).

note: The command switches the transparency of raster images background only on the screen. Raster images are not modified.

To change the transparency of raster image background:

1. Run the command.

2. Select the required option: Enter transparency mode [ON/OFF] <ON>:

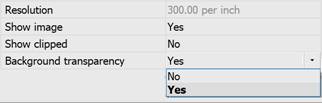

The background transparency of selected raster images can also be changed in the Properties bar.

CAD software Transparency of Raster Images Background 7
