Thinning
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Thinning
Ribbon: Raster – Filters >
Thinning
Menu: Raster – Filters > Thinning…
Command line: THINNING
This functionality is available only in the Raster module.
The filter in one pass thins raster fragments by one point (pixel) simultaneously in all directions. This filter has an additional parameter that allows you to thin raster objects to the skeleton (only the pixels located in the middle remain).

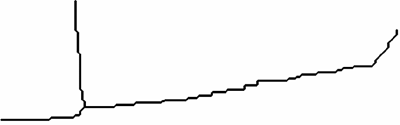

After thinning to skeleton
Select images to be processed and run the command.
Specify the number of filter passes, or select Thin image up to skeleton to turn all objects into one-pixel lines.
Click Apply.
