The "Edit" Command

    Icon:  Edit

 Command line: EDIT

The command allows you to edit nanoCAD’s objects such as tables, notes, dimensions, singleline and multiline text.

The command opens following dialogs for editing:

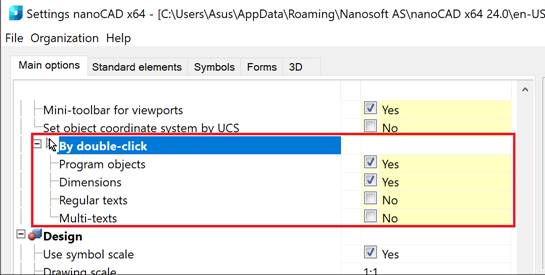

·         a table, a note, a dimension, a singleline and a multiline text (the Text settings dialog window) - if Yes is chosen for Program objects, Dimensions, Regular text and Multi-texts options of the Settings nanoCAD Int dialog box on the Main options tab of the By double-click section (the Tools menu –Advanced Settings),

·         a table, a note, a dimension – if No is chosen for the Program objects and Dimensions options of the Settings nanoCAD Int dialog box on the Main options tab of the By double-click section.

For more information, see the corresponding sections of this guide.
