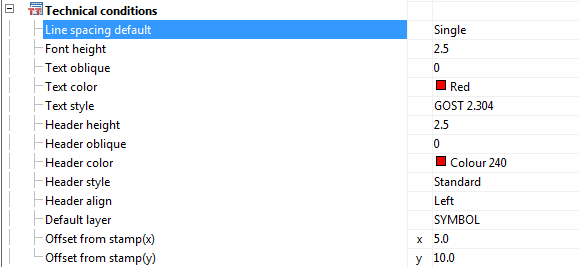

Technical conditions

It specifies settings of text of the technical requirements of nanoCAD Mechanica.

Line spacing default

Sets the default line spacing in the text of the technical requirements.

Font Height

Sets a default text height.

Text oblique

Sets a default value of the slope of the text in degrees.

Text Color

Sets color of text in technical requirements

Text style

Sets the default text style specifications.

Header height

Sets a default value of header height in technical requirements.

Header oblique

Sets a default value of the header oblique angle in degrees.

Header Color

Sets color of header

Header Style

Sets the default header style.

Header align

Aligns the heading of technical requirements for the title block.

Default Layer

Sets the standard layer to accommodate the technical requirements.

Designations indicate areas near to the position

Automatically inserts lettering area next to the item number.

Offset from title block(x)

Sets the value of the indentation from the left edge of the title block horizontally.

Offset from title block(y)

Sets the offset value from the main vertical lettering.
