Table of connections

Main menu: Construction - Communications >Table of connections.

Toolbar: Communications >Table of connections.

Command line: SPPORTTABLE.

Table of connections allows to connect a conditional links between ports.

These compounds are primarily needed to automatically trace divorce.

Dilogue

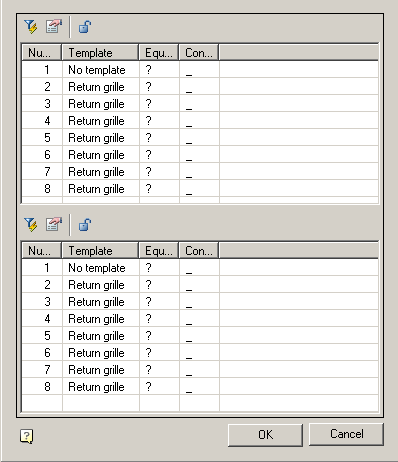

The form of dialogue "ConnectorsTableForm" consists of two overlapping lists. This is done for the convenience of the binding.

Each is equipped with a list of commands:

• Filer - opens the panel filter for columns. It used to filter the list.
• Columns - customizable columns.
• Remove selected links - remove links from the selected object.

The columns

Number - indicates the sequence number of the object

Template - a template in which the object was created

Equipment -the equipment to which it belongs port

Connection - a list of numbers of objects to which a view objects.

Note:

Sign "?" - It is not defined

Linking objects

To assign a connection to another object should be:

1. Select the object. Press and hold the left mouse button.

2. Lead one to connect objects. You can move an object in the same list and in the backup.

3. Lower the left mouse button. The object will be contacted and a mix of both fields to add a number of objects connected to the objects.

Note:

When going through the list of object over which the mouse cursor will be highlighted in the drawing. This allows you to verify the correctness of the choice of object.

Delete links

1. Select the object.

2. Call the popup menu

3. From the pop-up menu, choose the remote connection, or "All".

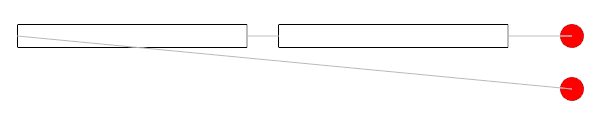

Showing links in the drawing

In imposing relations on the drawing shown links between objects on the non-printed layer "ISO_UNPLOTTED".
