Table

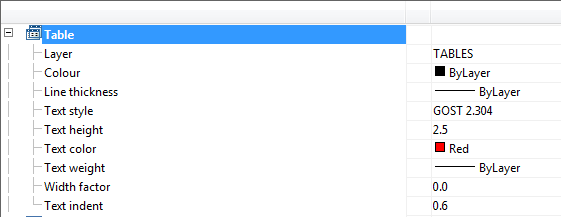

Settings of the tables in nanoCAD Mechanica .

Layer

Specifies layer for placing tables.

Color

Sets color of table elements.

Line thickness

Allows you to choose the thickness of the lines of text in the table.

Option "by layer" sets the line width from the layer it is placed (default value).

Option "By block" sets the line width for by the block in which it is included.

Option "By object" sets the line width individually using properties palette.

Selecting "Default" sets the default line thickness for the table.

You can also set the line width of a standard set of values.

Text style

Sets the default text style in the table

Text Height

Allows you to choose the standard text height.

Text Color

Control choice of color of text in tables.

Text weight

Allows you to choose the thickness of the lines of text in the table.

Option "by layer" sets the line width from the layer it is placed (default value).

Option "By block" sets the line width for by the block in which it is included.

Option "By object" sets the line width individually using properties palette.

Selecting "Default" sets the default line thickness for the table.

You can also set the line width of a standard set of values.

Width factor

Sets width factor for text in table cells.

Text Indent

Sets text indent in table cells.
