System Variable Monitor
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
System Variable Monitor
Ribbon: Manage – Palettes >
System variable
Menu: Tools >
System variable
Menu: View – Toolbars – Functional >
System variable
Command line: SYSVARMONITOR

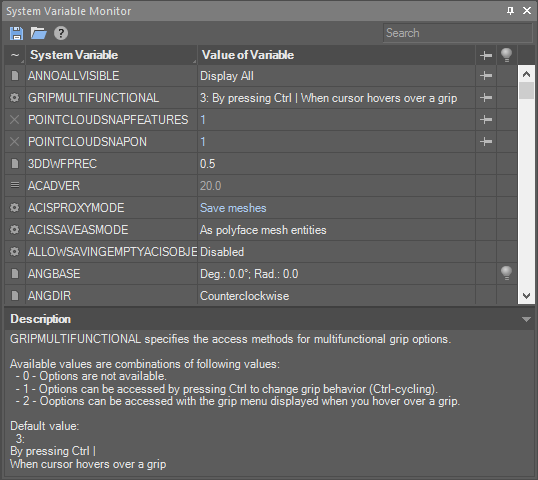

The System variable monitor displays system variables, their brief description and values, allowing you to edit, sort, search them and track changes in real time.
|
Saves variables to a file and load from the file. It is possible to save both all and only pinned |
|
Searches for variables by name. |
|
Storage location:
Sorting is performed by clicking on the column heading or by selecting an item in the menu, which opens by a long click on the heading. |
System Variable |
The name of the system variable. Sorting is performed by clicking on the column heading or by selecting an item in the menu, which opens by a long click on the heading. In addition to the direct and reverse alphabetical order, the variables can be sorted by frequency of use (More popular) and time of change (Most recently) during an active session of the program. |
Value of Variable |
The value of the system variable, which can be entered or selected from a list of fixed variants. Gray (muted) typeface indicates variables with constant values. If the value of a variable differs from its initial value, it is displayed in blue font. In most cases, the initial value is given in the variable description at the bottom section of the panel. |
|
Click in this column opposite the variable to fix the variable at the top of the list, regardless of the sorting method. The variable moves to the top of the list, the |
|
Click in this column opposite the variable to start tracking the change of the variable. Turned off lightbulb |
