Steps of an array

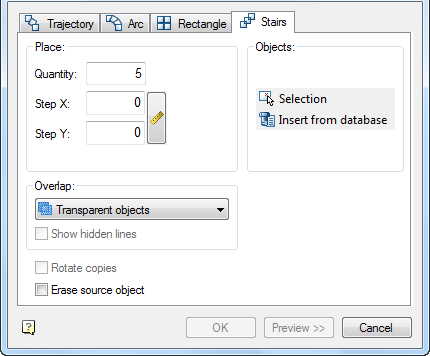

  1. Tab steps enter the governing parameters.
  2. Follow The selection object (object selection).
  3. Follow > View .
  4. Click OK to complete the command.

CAD drafting Steps of an array 0

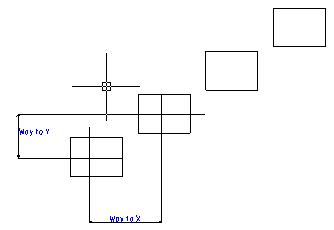

Enter the number of objects in the array, specify the amount of horizontal and vertical step between objects.

CAD software Steps of an array 1

↑
