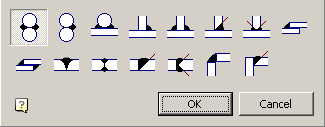

Simplified weld joint

Important!

As the rods and plates can be used primitives nanoCAD: circle and polyline (a special case polylines: rectangles, and polygons). To use the unit as a plate or an object from the database, you must use when choosing an instrument Magnet plate for constructing the circuit plate. Primitives must be tangent to each other.

Type: two rods overlap joints.

To add an overlap joint:

1. Call the command.
2. Select the drawing first rod .
3. Select the second rod.
4. To select the direction of one-way seam weld placement.

Two-way joint.

One-way joint.

Two-way joint.

Type: T-connection between two rods..

To add a T-joints:

1. Call the command.
2. Select the drawing first plate .
3. Select the second plate.
4. To select the direction of one-way seam weld placement.

Two-way joint.

One-way joint.

Two-way joint.

Two-way joint.

Type: two plates overlap joints.

To add an overlap joint:

1. Call the command.
2. Select the drawing first plate.
3. Select the second plate.
4. To select the direction of one-way seam weld placement.

Corner seam-sided.

Corner sided seam.

Type: Butt joint of two plates.

To add a butt joint:

1. Call the command.
2. Select the drawing first plate .
3. Select the second plate.
4. To select the direction of one-way seam weld placement.

One-way butt weld.

Sided butt weld.

One-way butt weld.

Sided butt weld.

Type: Angular connection of two plates.

To add a butt joint:

1. Call the command.
2. Select the drawing first plate.
3. Select the second plate.
4. To select the direction of one-way seam weld placement.

Corner seam-sided.

Corner seam-sided.
