Sheet of decorations

Main menu: Construction - Architecture - Schedules >Sheet of Decoration.

Ribbon: Construction - Architecture >Sheet of Decoration.

Toolbar: Architecture >Sheet of Decoration.

Command line: SPTABLEROOMS.

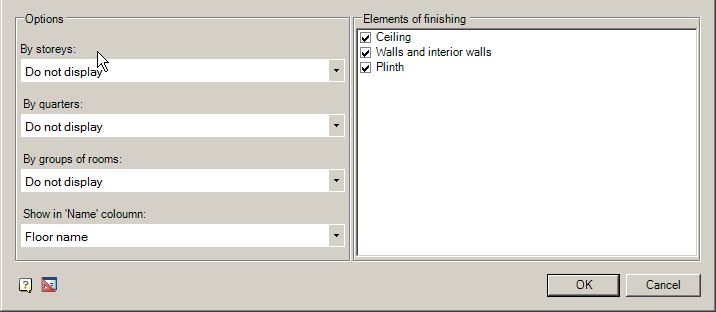

For the preparation of list of decorations after the call of command to you need to select rooms to be included in the statement. A dialog box with the options to customize data sorting is appeared.

Settings for table generation and grouping:

• By storeys: Do not display \Column + union \Title
• By quarters: Do not display \Group
• By groups of rooms: Do not display \Group \Merge
• Show in Name column: Name space \ number and name space

When selecting settings on the floors: Do not print, the flats: Do not display by category spaces: Do not display - displays the source table as is.

In the dialog box, you can delete unwanted items in statement finishes.



Double-clicking on a table placed in the drawing, a dialog box opens Gazette decoration, ie at any point in the table can be edited to change the output options and grouping data.
