Separate Raster Image

CAD drafting Separate Raster Image 0       Ribbon: Raster – Settings > CAD software Separate Raster Image 1 Separate raster

CAD drawing Separate Raster Image 2       Menu: Raster – CAD drafting Separate Raster Image 3 Separate raster

CAD software Separate Raster Image 4      Toolbar: Raster – CAD drawing Separate Raster Image 5 Separate raster

CAD drafting Separate Raster Image 6 Command line: SEPARATERASTER

You can separate raster images from original reference and assign new name and path, if raster image was inserted to drawing more than once or its copies were created in a session.



1.      Run command Separate raster.

2.      Select raster images to create separate references to files.

3.      Press Enter.

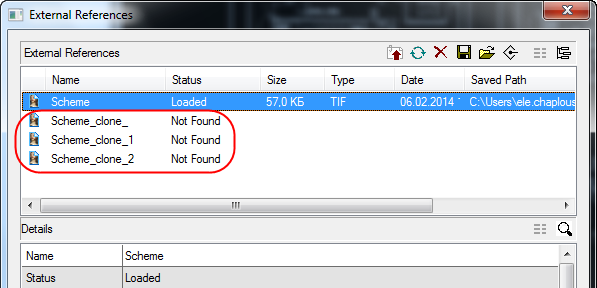

Separated raster images marked in External references dialog by adding _clone_N  to the name, N – ordinal number of copy.

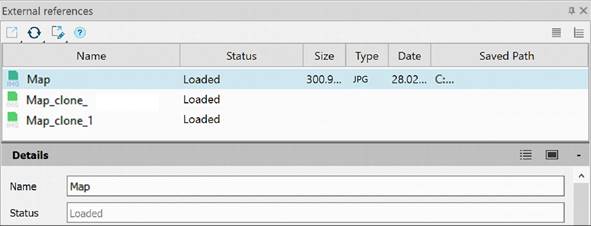

Raster images can be given a new name and storage path using the External References toolbar:

CAD software Separate Raster Image 7

If separate raster images are not saved, then program prompts you to save them on exit.
