Selecting Data in Raster Images

Selection of Data in Raster Images

CAD drafting Selecting Data in Raster Images 0   This functionality is available only in the Raster module.

To edit the content of monochrome raster images, apply the raster selection. Using various types of selection, you can select on raster images:

·         raster objects – raster lines, arcs and circles;

·         areal fragments of a raster image;

·         raster lines segments – fragments of raster lines of any shape limited by points of intersection with other raster lines or endpoints;

·         isolated raster fragments – multiple interconnected raster points.

The Order of Raster Selection

·         set the selection mode: add data to selection, remove from selection, single selection;

·         run one of the selection methods: specifying, within the rectangle, clipping polygon, etc. The selection method is assigned based on the type of raster data being selected;

·         carry out the procedure for pointing on the image in accordance with the running method.

BKM_SelectMode

Quantitative Raster Selection Modes

CAD software Selecting Data in Raster Images 1    Ribbon: Raster – Raster Selection – Basic methods > …

CAD drawing Selecting Data in Raster Images 2    Menu: RasterRaster Select > …

Button

Mode

Action

CAD drafting Selecting Data in Raster Images 3

Single

Each new selection cancels the previous selection

CAD software Selecting Data in Raster Images 4

Remove

The selected data are excluded from the existing selection.

CAD drawing Selecting Data in Raster Images 5

Add

New raster data are added to the selection set.

CAD drafting Selecting Data in Raster Images 6

Select All

The content of all raster images is selected.

CAD software Selecting Data in Raster Images 7

UnSelect All

All data are unselected.

BKM_SelectMethod_Base

Basic Selection Modes

CAD drawing Selecting Data in Raster Images 8    Ribbon: Raster – Raster Selection > …

CAD drafting Selecting Data in Raster Images 9    Menu: RasterRaster Selection > …

Button

Method name

Specifying procedure

Selected raster data

CAD software Selecting Data in Raster Images 10

Select Auto

Specify the object.

Raster object.

CAD drawing Selecting Data in Raster Images 11

Select by rectangle (rectangular area)

Specify opposite corners of rectangular area.

All raster data inside the rectangular area. The selection border runs exactly along the edge of the rectangular selection box.

CAD drafting Selecting Data in Raster Images 12

Select by polygon (polygonal area)

Specify points that determine the boundary of a polygonal area that completely covers the selected data. Press ENTER.

All raster data are polygon-bound. The selection border runs exactly along the edge of the polygonal selection box.

CAD software Selecting Data in Raster Images 13

Select Raster Line

Specify two points - the ends of the reference line.

Raster line below the reference line

CAD drawing Selecting Data in Raster Images 14

Select Raster Arc

Set three points - start, arbitrary midpoint, and end point of the reference arc.

Raster arc below the reference arc.

CAD drafting Selecting Data in Raster Images 15

Select Raster Circle

Specify two points - the ends of the reference circle diameter.

Raster circle below the reference circle.

CAD software Selecting Data in Raster Images 16

Select Raster Flood Fill

Specify any point on a raster object

Parts of an image whose raster points touch each other.

This is useful for selecting isolated raster objects.



Object Raster Selection Methods

The trace selection of raster data is based on the principle of recognition of individual raster objects: raster lines, arcs and circles in the selected area or on its border.

CAD drawing Selecting Data in Raster Images 17

Inside window

Specify opposite corners of the rectangular area.

Objects that are completely within the rectangle. Raster objects crossed by the rectangle border are not selected.

CAD drafting Selecting Data in Raster Images 18

Inside polygon

Specify points that determine the boundary of the polygonal area. Press ENTER.

Objects that are completely inside the polygon. Raster objects crossed by the polygon border are not selected.

CAD software Selecting Data in Raster Images 19

Cross window

Specify opposite corners of the rectangular area.

Objects that are inside the region, as well as all raster objects crossed by the rectangle border.

CAD drawing Selecting Data in Raster Images 20

Cross polygon

Specify points that determine the boundary of the polygonal area. Press ENTER.

Objects that are inside the polygon, as well as all raster objects crossed by the polygon boundary.

CAD drafting Selecting Data in Raster Images 21

Fence

Specify a set of points – polyline vertices. Press ENTER.

Raster objects crossed by the specified line.



BKM_SelectMethod_Trace

Trace Selection Methods.

Trace selection of raster data is based on the principle of recognizing raster line segments in a given area or before crossing with other segments.

Button

Method name

Specifying procedure

Selected raster data

CAD software Selecting Data in Raster Images 22

Inside window (trace)

Specify opposite corners of the rectangular area.

Objects that are completely within the area before crossing with other segments. Raster objects crossed by the rectangle border are not selected.

CAD drawing Selecting Data in Raster Images 23

Inside polygon (trace)

Specify points that determine the boundary of the polygonal area. Press ENTER.

Objects that are completely inside the polygon before crossing with other segments. Raster objects crossed by the polygon border are not selected.

CAD drafting Selecting Data in Raster Images 24

Cross window (trace)

Specify opposite corners of the rectangular area.

Objects that are inside the region and crossed by the rectangular border before crossing with other segments.

CAD software Selecting Data in Raster Images 25

Cross polygon (trace)

Specify points that determine the boundary of the polygonal area. Press ENTER.

Objects that are inside the polygon and crossed by the polygon boundary before crossing with other segments.

CAD drawing Selecting Data in Raster Images 26

Fence (trace)

Specify a set of points – polyline vertices. Press ENTER.

Raster objects crossed by the specified line before crossing with other segments



BKM_SelectMethod_FloodFill

Fill Selection Methods

The fill selection of raster data is based on the principle of recognition in a given area of contacting (merging) raster points.

Button

Method name

Specifying procedure

Selected raster data

CAD drafting Selecting Data in Raster Images 27

Inside window (fill)

Specify opposite corners of the rectangular area.

Objects that have contacting pixels and are completely within the rectangle.

CAD software Selecting Data in Raster Images 28

Inside polygon (fill)

Specify points that determine the boundary of the polygonal area. Press ENTER.

Objects that have contacting pixels and are completely within the polygon.

CAD drawing Selecting Data in Raster Images 29

Cross window (fill)

Specify opposite corners of the rectangular area.

Objects inside the area, crossed by the rectangle border and all contacting areas.

CAD drafting Selecting Data in Raster Images 30

Cross polygon (fill)

Specify points that determine the boundary of the polygonal area. Press ENTER.

Objects inside the polygon and crossed by the polygon border and all contacting areas.

CAD software Selecting Data in Raster Images 31

Fence (fill)

Specify a set of points – polyline vertices. Press ENTER.

Raster objects crossed by the specified line and all contacting ones.



Setting Selection Options

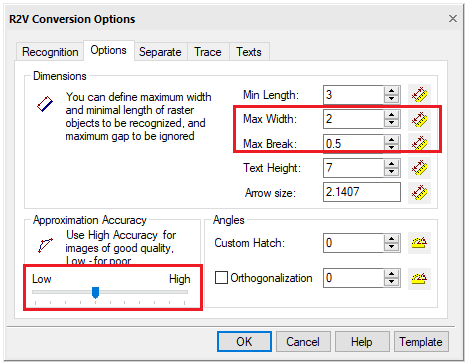

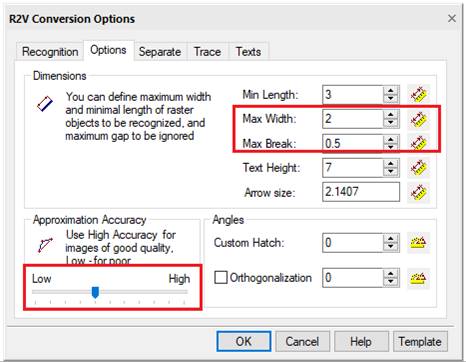

For correct recognition of raster objects when using the object selection methods, it is necessary to make settings in the Options tab of the Conversion options dialog box:

CAD drawing Selecting Data in Raster Images 32

Selection options for recognizing raster objects

Option

Description

Max. width

The maximum thickness of raster objects that can be selected using object recognition or line-following methods. Lines that are thicker than the specified value will not be selected.

Max. break

The amount of the maximum ignored raster line break. If the raster line breaks are less than the specified value, the line will be selected as a single object.

Approximation Accuracy

When a raster is selected using methods based on object recognition, the Accuracy parameter sets the acceptable degree of deviation of the shape of raster entities from their vector prototypes.

If the original raster entities are distorted, for example, the raster circles are elliptical, the selection accuracy will increase as you move the Accuracy slider to the left. To make a selection on the original raster image of good quality, move the slider to the right.

The values of Max. thickness and Max. break parameters can be measured in a raster image using CAD drafting Selecting Data in Raster Images 33 buttons next to the fields.
