Select Color Dialog Box

CAD drafting Select Color Dialog Box 0 Command line: COLOUR, COLOR, COL

The Select Color dialog box allows you to set the desired color for editing element: drawing object, dimension style, layer etc.

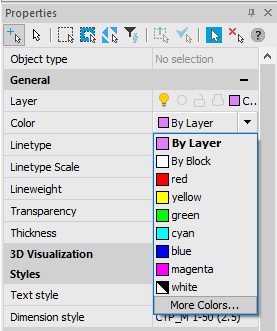

The dialog opens also when editing the color of layer or object by clicking More Colors… in drop-down list of colors:

CAD software Select Color Dialog Box 1

The dialog box contains three tabs: Index Color, True Color, Color Books.

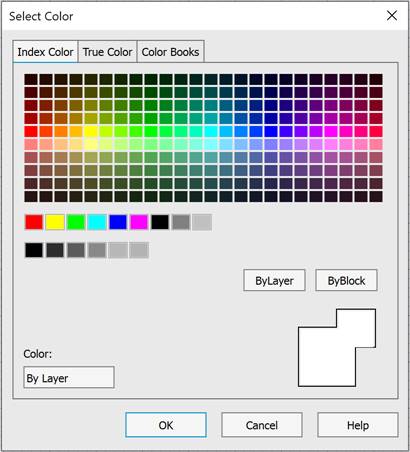

Index Color Tab

The Index Color tab allows you to select the color from the nanoCAD color index palette.

CAD drawing Select Color Dialog Box 2

When you hover over a color, the Index Color indicates the color number (index), while the RGB indicates the RGB (red, green, blue) color value.

You can select a color in the following ways:

·         click the desired color in the Index Color palette, True Color palette, or Grayscale palette;

·         select By Layer or By Block value by clicking the appropriate button;

·         enter the color number, name either By Layer or By Block value in the Color box.

Selected color will be displayed in the New Color swatch (big square).

CAD drafting Select Color Dialog Box 3

Parameters:

Color Index palette

Displays colors 10 through 249 selectable.

Named colors palette

CAD software Select Color Dialog Box 4

Displays colors 1 through 9; these colors have names as well as numbers.

Grayscale palette

CAD drawing Select Color Dialog Box 5

Displays colors 250 (black) through 255 (white); these colors are shades of gray.

CAD drafting Select Color Dialog Box 6

The button sets the color to By Layer. This means that the object color will be identical to the color of the layer on which it lies. The square of the new color sample will display the color of the layer on which the object lies.

The square of the new color sample will display the color of the layer on which the object lies. This button is not available when selecting a color for a layer.

CAD software Select Color Dialog Box 7

The button sets the color to the By block value. Before being placed in a block, such an object will be black or white (depending on the settings). After being inserted into a block, the object color will be equivalent to the color of the block in which it is placed.

The color of the layer on which the object is located will be displayed in the square of the new color sample. This button is not available when selecting a color for a layer

Color field

CAD drawing Select Color Dialog Box 8

A text field that displays the number or name of the selected color, as well as the selected By Layer or By Block values. Allows you to enter a new color number value from the keyboard.

Old Color and New Color Swatch

CAD drafting Select Color Dialog Box 9

The large square displays the color selected in the dialog, the small one displays the color being changed.

True Color Tab

The True Color tab allows to select the color using true color palette, over sixteen million colors are available.

Color model drop-down list determines the contents of the entire tab and allows to select the color in HSL, RGB or HSV color scheme.

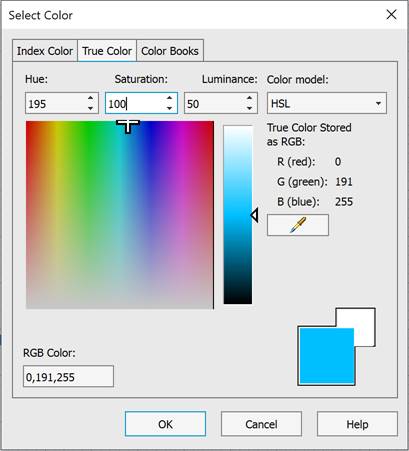

HSL color model

The HSL color model allows to compose the color from hue, saturation and luminance (lightness) components. You can set the color using the color spectrum, by specifying the numerical values of the components in the corresponding fields or by using the eyedropper to specify a sample of any point on the screen.

CAD software Select Color Dialog Box 10

Options:

Hue

Sets the wavelength of light within the visible spectrum. Acceptable Hue values range from 0 to 360 degrees.

Saturation

Determines the degree of visual difference between a chromatic color and an achromatic analog of equal brightness from the grayscale range. The Saturation value ranges from 0 (grayscale) to 100% (maximum saturation, “pure” color).

Luminance

Sets the brightness value (Luminance) of the color. Ranges from 0 (black) to 100% (white).

CAD drawing Select Color Dialog Box 11

Sets the color based on a sample of any point on the screen. When the mode is enabled, the cursor takes the form of a crosshair CAD drafting Select Color Dialog Box 12. To exit the mode, click ESC.

RGB color:

A text field displaying color values in the RGB (red, green, blue) color model. Allows you to enter a new color value from the keyboard.

Samples

CAD software Select Color Dialog Box 13

The large square displays the color selected in the dialog, the small one displays the color being changed.

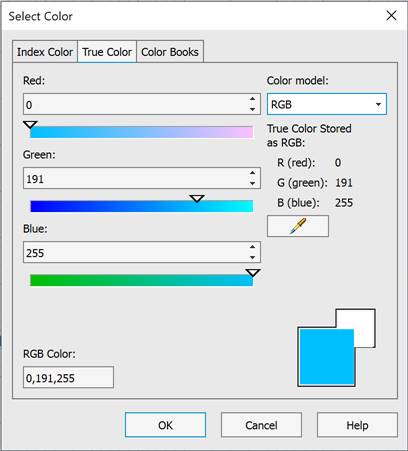

RGB Color Model

The RGB color model allows you to select a color by specifying its red, green, and blue components. The value of each component ranges from 0 to 255 and can be specified by entering a numeric value or moving the slider.

CAD drawing Select Color Dialog Box 14

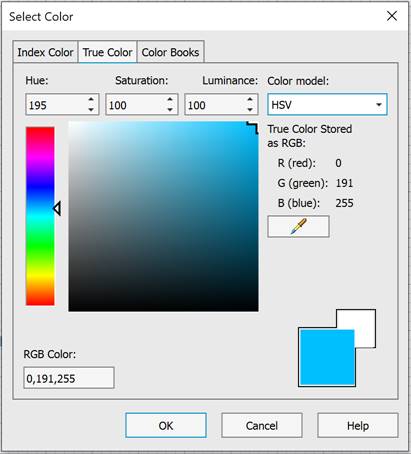

HSV color model

The HSV color model allows you to compose a color from its components such as hue, saturation and brightness (colors). You can set the color using the color spectrum, by specifying the numerical values of the components in the corresponding fields or by specifying an eyedropper on the sample of any point on the screen.

CAD drafting Select Color Dialog Box 15

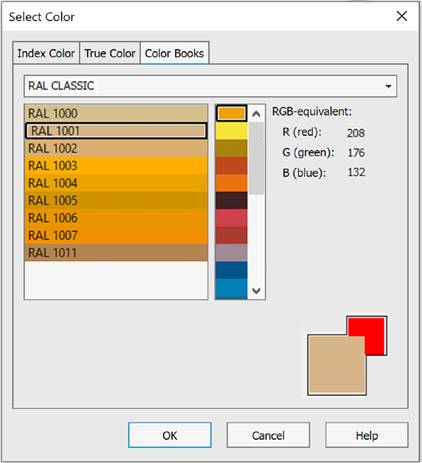

Color Books Tab

The Color Books tab allows you to select a color from custom color albums. The color album file is an xml file with the acb extension.

CAD software Select Color Dialog Box 16

Connecting color books



1.      In the OPTIONS dialog, in the Standard directories section, in the Color books files location subsection, specify the access paths to the folders in which the program should search for color books files. To do this:

·       click the Add button on the right side of the dialog;

·       click the Browse… button in the dialog that opens;

·       select or create a folder. Close dialogs.

2.      Copy the *.acb color books files to the selected or created folder.

3.      Books are available in the drop-down list on the Color Books tab:

CAD drawing Select Color Dialog Box 17

Switching between book sections is done in the vertical scroll bar:

CAD drafting Select Color Dialog Box 18

The left field displays the palette color and its name in the album. The right field displays the color value in the RGB color model and samples of the old and new color.
