Recalculation of Coordinates

CAD drafting Recalculation of Coordinates 0      Ribbon: TopoplanSettings > CAD software Recalculation of Coordinates 1 Recalculation of Coordinates

CAD drawing Recalculation of Coordinates 2      Menu: TopoplanSettings > CAD drafting Recalculation of Coordinates 3 Recalculation of Coordinates

CAD software Recalculation of Coordinates 4      Toolbar: Topoplan Settings > CAD drawing Recalculation of Coordinates 5 Recalculation of Coordinates

CAD drafting Recalculation of Coordinates 6   Command line: NG_REPROJECTION



The command recalculates geocoordinates of topoplan objects to another system using EPSG codes.

CAD software Recalculation of Coordinates 7

To recalculate coordinates:



1.  Run the command.

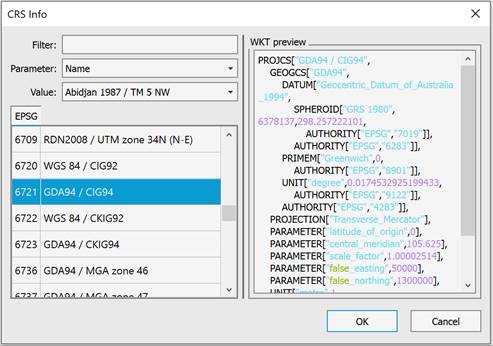

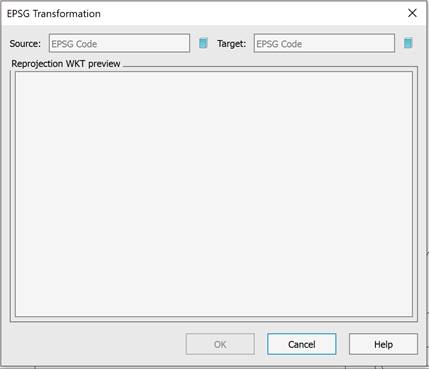

2.  In the dialog box that appears, in the Source EPSG and Target EPSG fields, enter the number of the source and target coordinate systems according to the EPGS classification, based on the list on the left side of the window. You can use the search filter. When finished, click Apply.

3.  Information about the transformation will appear at the bottom of the dialog box. Click OK to confirm the transformation.

The list of coordinate systems for conversion also includes user-created coordinate systems (the Create Coordinate System command). The file with user-created coordinate systems is located at – C:\Users\User_name\AppData\Roaming\ Nanosoft\Ошибка! Неизвестное имя свойства документа. 25.0\imppointslib\geoids\other.extra.

NOTE: The NG_REPROJECTION command works only with Topoplan and is not intended for recalculation of Point Clouds.
