Raster Texture Mapping

CAD drafting Raster Texture Mapping 0   Ribbon: Topoplan – Texturing and Calculations > CAD software Raster Texture Mapping 1 Raster Texture Mapping

CAD drawing Raster Texture Mapping 2   Menu: Ground – Textures > CAD drafting Raster Texture Mapping 3 Raster Texture Mapping

CAD software Raster Texture Mapping 4   Toolbar: Textures and Calculations > CAD drawing Raster Texture Mapping 5 Raster Texture Mapping

CAD drafting Raster Texture Mapping 6 Command line: NG_ORTHO_IMAGE

With this command you can create a textured surface. The texture is created by mapping any raster loaded in the drawing on the mesh.

After running the command, in response to the corresponding prompts, select sequentially Submesh and Raster image object in the drawing.

Mesh before texture mapping

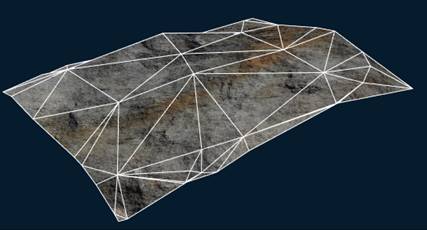

Mesh after texture mapping

CAD software Raster Texture Mapping 7

CAD drawing Raster Texture Mapping 8



After removing the raste from the drawing, the surface preserves the texture:

CAD drafting Raster Texture Mapping 9
