Projecting a Line onto a Mesh

CAD drafting Projecting a Line onto a Mesh 0 Ribbon: Topoplan – Relief > CAD software Projecting a Line onto a Mesh 1 Projecting a Line onto a Mesh

CAD drawing Projecting a Line onto a Mesh 2 Menu: Ground – Elevation > CAD drafting Projecting a Line onto a Mesh 3 Projecting a Line onto a Mesh

CAD software Projecting a Line onto a Mesh 4 Toolbar: Elevation > CAD drawing Projecting a Line onto a Mesh 5 Projecting a Line onto a Mesh

CAD drafting Projecting a Line onto a Mesh 6 Command line: NG_TO_PROFILE_LINE

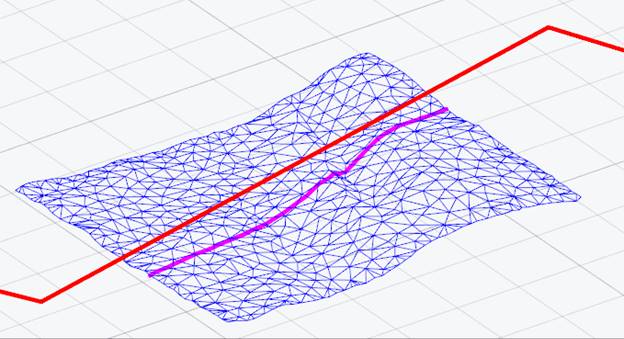

The command is designed to project the existing plan elements onto a surface.

CAD software Projecting a Line onto a Mesh 7

Command prompts:

Project profile on or [WCS/UCS/Viewport]:

Defines how the polyline will be projected onto the mesh:

WCS – on the XY plane of the world coordinate system.

UCS – on the XY plane of the user coordinate system (if available in the drawing).

Viewport – on the viewport plane.

Select polyline to build profile line or [?]:

Select line, polylines or 3D polylines to project onto the mesh.
