Point Cloud Info

Information

Get info about selected point cloud or specific point. Properties toolbar shows some info.

Point Cloud Comparison Widget

Enabling the Point Cloud Comparison Widget

Enables a widget that displays the results of commands in the form of a deviation distribution chart in the right side of the viewport.

 Enabling the Point Cloud Comparison Widget.

    Ribbon: Point Clouds – Information>  Enabling the Point Cloud Comparison Widget

    Menu: Point Clouds – Information>  Enabling the Point Cloud Comparison Widget

    Toolbar: Settings and Information >  Enabling the Point Cloud Comparison Widget

 Command line: NPC_COMPARE_LEGEND_ON

A similar diagram of the distribution of deviations can be viewed in the View Mode dialog for the Deviation value coloring type.

Disabling the Point Cloud Comparison Widget

The widget can be disabled by the NPC_COMPARE_LEGEND_OFF command

 Disabling the Point Cloud Comparison Widget.

    Ribbon: Point Clouds – Information>  Disabling the Point Cloud Comparison Widget

    Menu: Point Clouds – Information>  Disabling the Point Cloud Comparison Widget

    Toolbar: Settings and Information >  Disabling the Point Cloud Comparison Widget

 Command line: NPC_COMPARE_LEGEND_OFF

    Ribbon: Point Clouds – Calculations and Info >  Point Cloud Info

    Menu: Point Clouds – Calculations and Info >  About Cloud

    Toolbar: Point Clouds >  Point Cloud Info

    Properties toolbar – Misc – Point cloud info >  button

 Command line: NPC_INFO

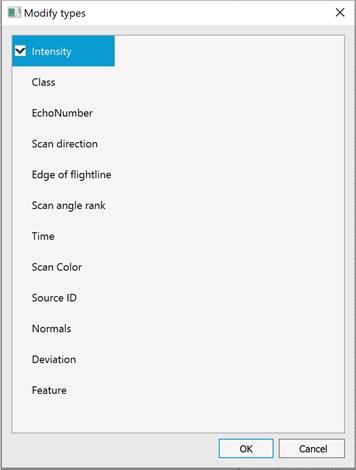

Displays statistic information about point cloud and excludes/includes certain point cloud attributes.

Statistics

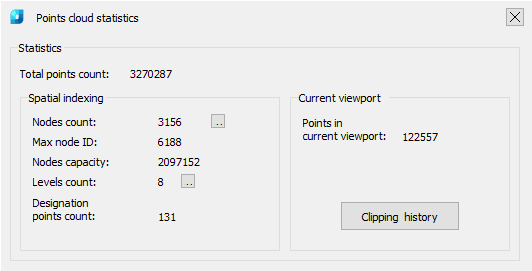

Statistics displays the number of cloud points, nodes and levels in the point cloud structure tree, their maximum and designation.

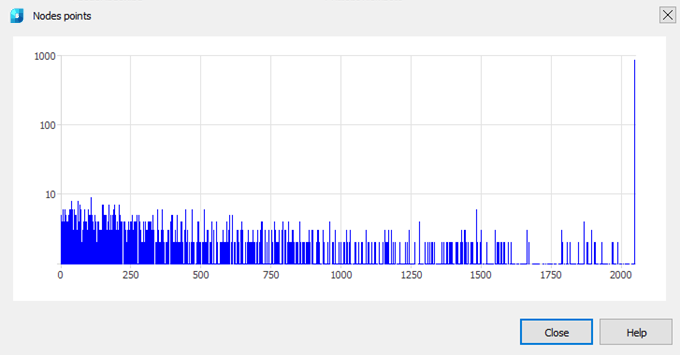

The  button next to the Nodes count option opens a diagram of the distribution of points by nodes of the cloud tree.

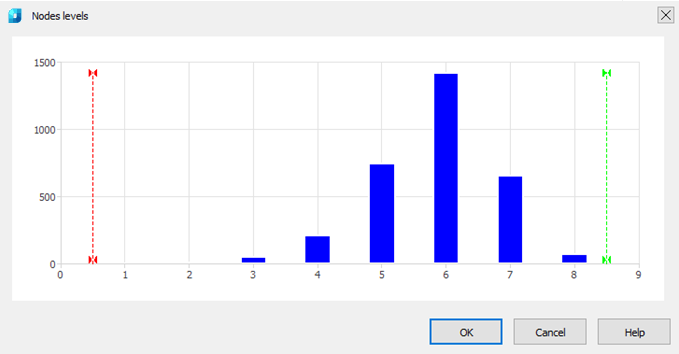

A diagram of the distribution of nodes (vertical diagram) by levels of the structured cloud tree (horizontal diagram) can be viewed by clicking the  button next to the Levels count option. By moving the right or left borders on the distribution diagram, you can cut off the display of cloud points belonging to certain levels of the hierarchical structure. On the drawing, such points will disappear.

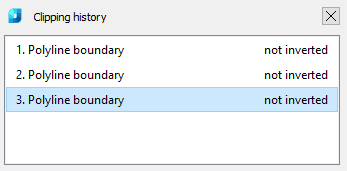

The Points in current viewport parameter shows how many cloud points are actually displayed in the current view, including all clippings and sections. The history of clippings and sections of the point cloud can be viewed by clicking the Clipping history button.

Cloud Attributes

The Storage structure section displays information on the presence or absence of certain attributes of points of the could imported into a document.

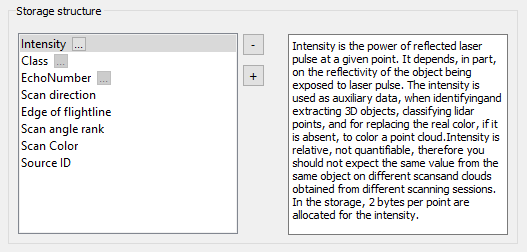

The list contains a list of existing cloud point attributes. The window on the right displays a description of the selected attribute.

The  button unloads (deletes) the selected attribute from the cloud. This removes all information on this attribute from the point cloud in the document. After unloading, the possibility to carry out operations using the unloaded attributes, including coloring the point cloud by this attribute, is lost.

If originally the cloud did not have Class attribute, enabling the create layer box will automatically create a new layer with the name Created, never classified (code 0) and assign class 0.to all cloud points

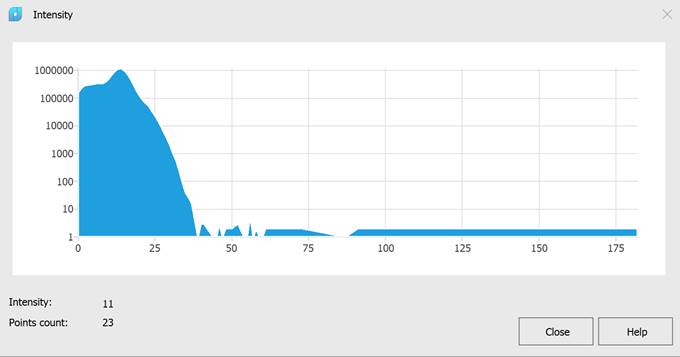

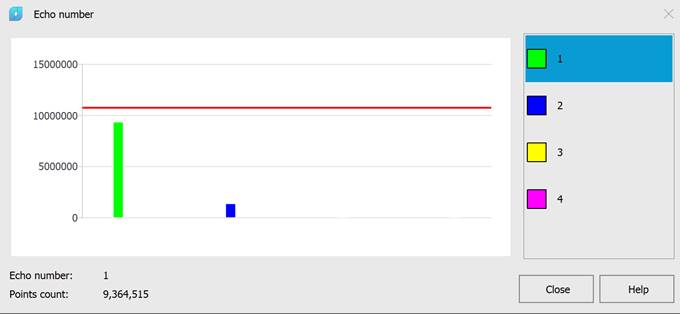

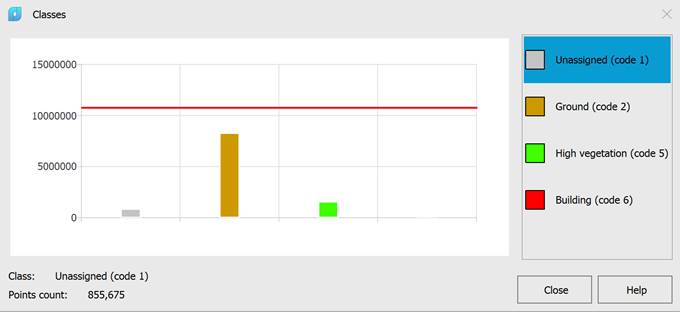

The  button next to some attributes allows you to view the diagram of the distribution of the values of this attribute. This is possible for such attributes as Intensity, Class and Echo number. If there are no attribute values, the chart is not displayed.

Geoinformation

Point clouds imported from some types of formats (LAS, LAZ) can be geo-referenced. In the Georeference section, by clicking the Georeference information button, you can view detailed information about the coordinate system and georeference of the cloud.

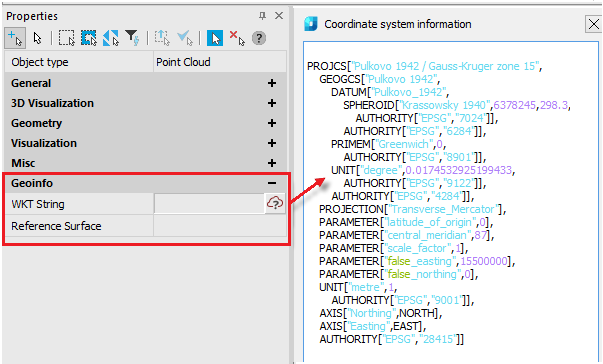

The same information for the cloud selected in the workspace can be viewed in the Properties bar in the Geoinfo section.
