Point Cloud Display Style

CAD drafting Point Cloud Display Style 0       Ribbon: Point Clouds > Settings > CAD software Point Cloud Display Style 1 View Mode

CAD drawing Point Cloud Display Style 2       Menu: Point clouds > CAD drafting Point Cloud Display Style 3 View mode

CAD software Point Cloud Display Style 4       Toolbar: Point clouds > CAD drawing Point Cloud Display Style 5 View mode

CAD drafting Point Cloud Display Style 6       Functional bar PropertiesVisualizationChange visualization > CAD software Point Cloud Display Style 7 button

CAD drawing Point Cloud Display Style 8 Command line: NPC_VIEWMODE

The command opens View Mode that allows you to stylize a point cloud in accordance with the values of these or those attributes of this cloud. In fact, the command paints each cloud point in accordance with the attribute value in this point. The user selects the attribute by stylize by. In case the necessary attributes are present in the cloud, stylization is possible by:

·         color;

·         intensity;

·         class;

·         echo number;

·         source ID.

Also, you can color point cloud by selected color or cloud elevation (along the Z axis).



Options:

CAD drafting Point Cloud Display Style 9

When enabled, the selected cloud is not highlighted.

CAD software Point Cloud Display Style 10

The buttons toggle the display of the recoloring result after the Apply button is pressed.

CAD drawing Point Cloud Display Style 11

The size of points in cloud in pixels. The size of deviation and normal vectors also depends on this parameter.

CAD drafting Point Cloud Display Style 12

Coloring type:

The list of available attribute values.

CAD software Point Cloud Display Style 13

A drop-down list of cloud attributes available for stylization. The number of attributes in the list depends on which of them were imported together with the cloud from the scan file.

CAD drawing Point Cloud Display Style 14

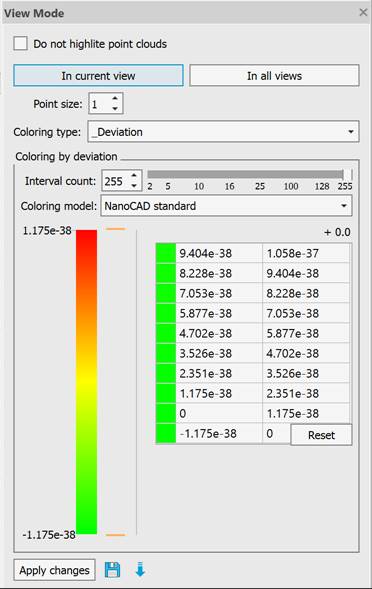

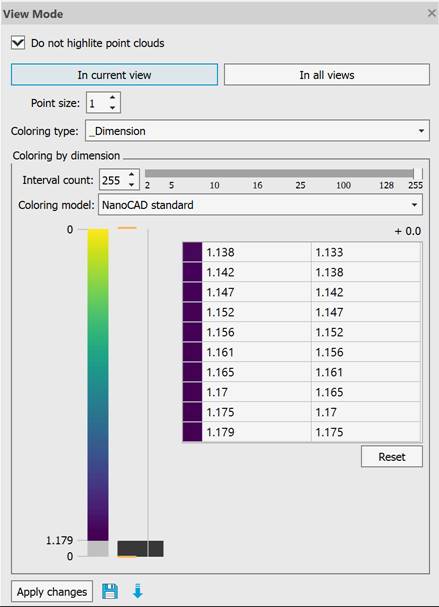

The number of ranges of the same color into which the entire cloud will be divided when coloring. This field is available when coloring by elevation, intensity, or deviation value.

CAD drafting Point Cloud Display Style 15CAD software Point Cloud Display Style 16



It is possible to turn off multiple forms by first selecting them using Shift.

Scan Color

Color the cloud according to points color in the source file.

CAD drawing Point Cloud Display Style 17

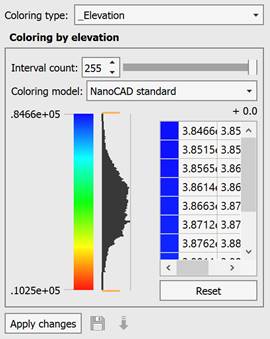

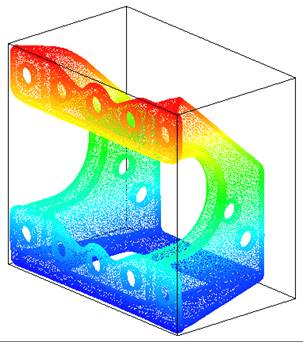

Elevation

Coloring depends on the Z-coordinate value in each point of cloud.

CAD drafting Point Cloud Display Style 18

CAD software Point Cloud Display Style 19

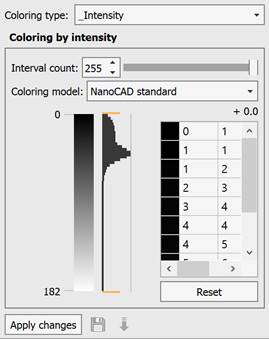

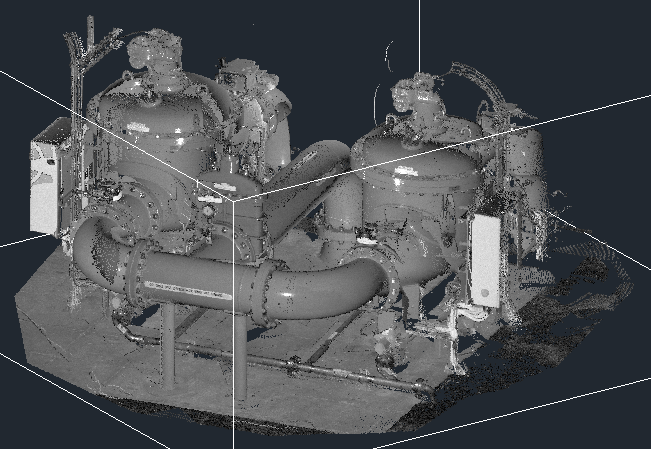

Intensity

CAD drawing Point Cloud Display Style 20

Coloring based on the intensity of the reflected pulse(Intencity attribute).



CAD drafting Point Cloud Display Style 21



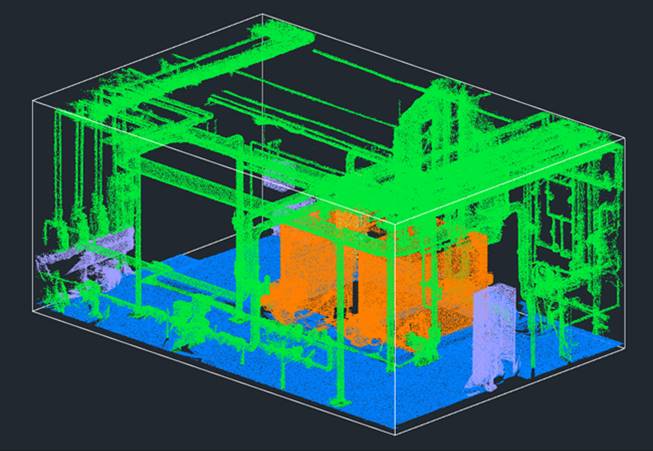

Code

CAD software Point Cloud Display Style 22

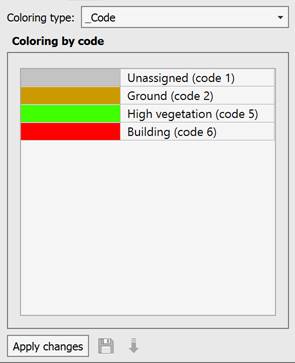

Color the cloud according to point classes. Points can be classified into a number of categories including bare earth or ground, top of canopy, and water. This coloring type may color the cloud with the Standard LAS Classification.







CAD drawing Point Cloud Display Style 23



Echo number

CAD drafting Point Cloud Display Style 24

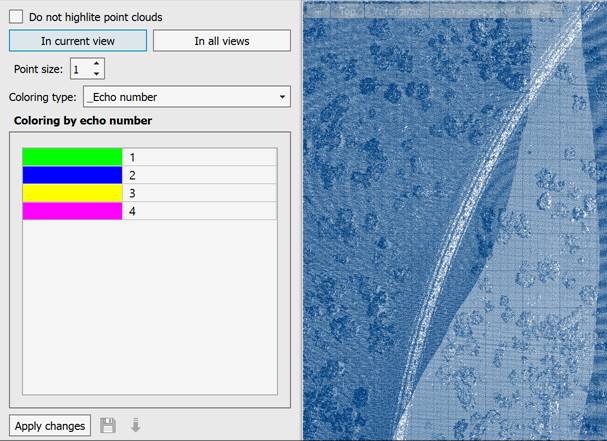

Coloring a cloud according to the sequential number of the laser beam reflection at a certain point, obtained during scanning.

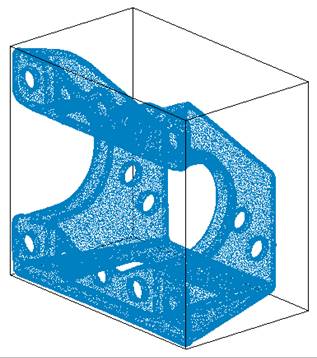

Color



CAD software Point Cloud Display Style 25

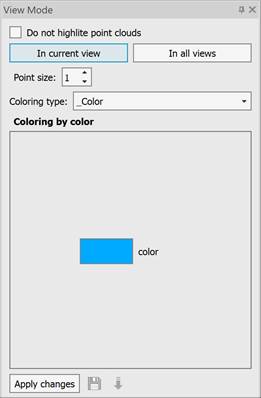

Coloring all points of the cloud with any selected color.

CAD drawing Point Cloud Display Style 26



Source ID

CAD drafting Point Cloud Display Style 27

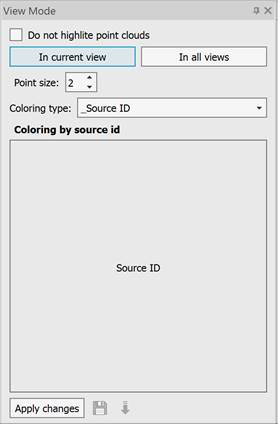

Coloring point cloud according to a unique source scan ID. One cloud can be formed as a result of several scans of one and the same object from different points. This type allows you to color the cloud points depending on the identifier of the scan source.

Program selects color for every source automatically.







Normal

Renders the direction of cloud point normals (Normal attribute), if present in the cloud. It is possible both to color the points depending on the normal direction, and to directly display the normal vectors.

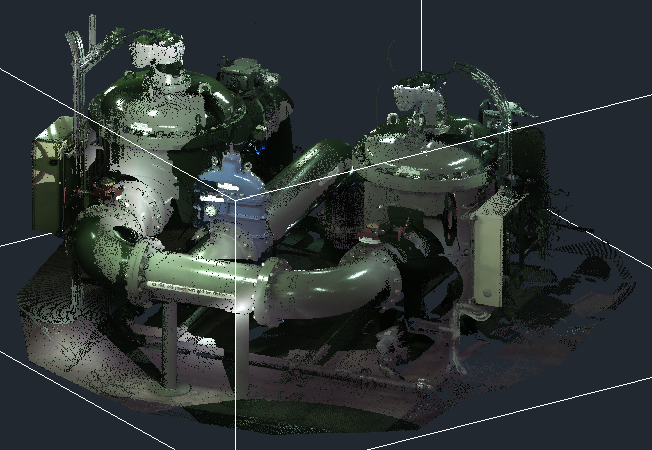

Cloud points are colored according to the direction of their normals.





CAD software Point Cloud Display Style 28

Normals are created by cloud triangulation commands, features recognition commands, and fitting commands. Normals may not always be calculated correctly. In this case, it is recommended to recalculate the normals.

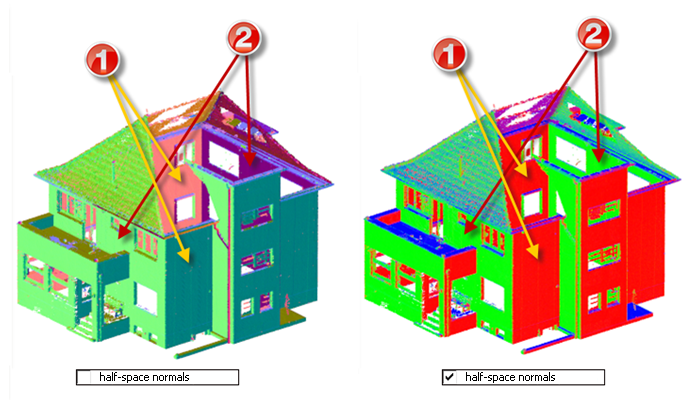

When the Half-space normals box is checked, all collinear normal vectors begin to be displayed in the same color. So coloring does not distinguish between normals pointed in exactly opposite directions. This assigns them color equal to the interpolation of the colors of the axes of the current UCS. Points with normals collinear to a particular coordinate axis will have the color of that axis.



CAD drawing Point Cloud Display Style 29

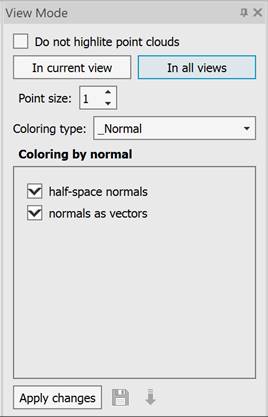

You can check the Normals as vectors box to display the normal vectors, and not just color the points of the cloud according to the directions of the normals. The size of the vectors on the screen depends on the size of the cloud point (Point size field). Normal vectors are only displayed when using DirectX as a hardware graphics accelerator.

Feature and Feature type

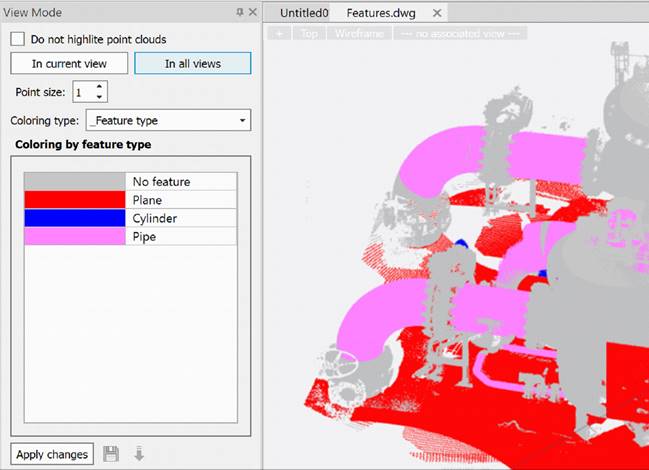

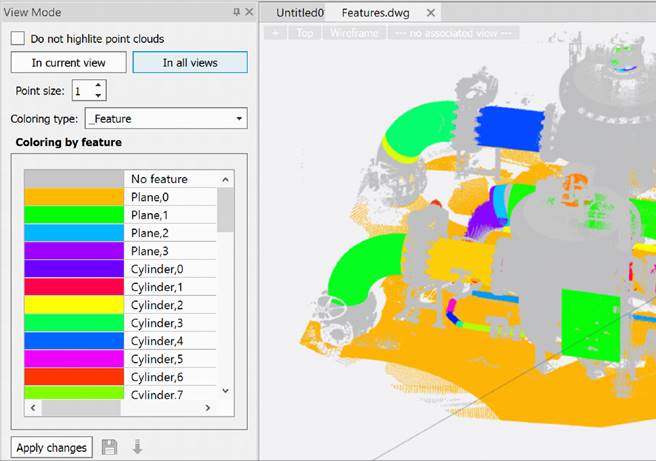

The Feature type and Feature coloring become available for point clouds in which features have been recognized by geometry search commands (pipelines, pipeline elements, planes, plane and pipe elements). These coloring types are designed to visualize such features in the cloud.

CAD drafting Point Cloud Display Style 30

CAD software Point Cloud Display Style 31

Clips

At the bottom of the toolbar, there is the Clips section, which is responsible for clips (in this case, breakdown by some geometric features), which can be:

CAD drawing Point Cloud Display Style 32

·         named views

·         division by codes

·         by features

·         by feature types

·         by echo number

If the cloud has the necessary attributes, the corresponding clip type will be displayed in the window at the bottom of the toolbar. A cloud can have several clips.
