nanoCAD Platform Help

Paper space commands

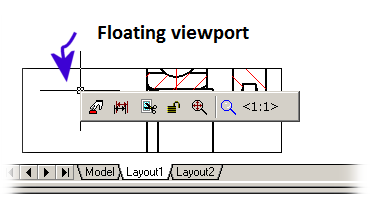

When designing drawing projections in paper space, the context menu is available nanoCAD Construction . To call the menu, place the cursor in the area of the floating viewport and press right-click.

CAD drafting Paper space commands 0

CAD software Paper space commands 1Activate viewport - command activates viewport for editing.

CAD drawing Paper space commands 2Refresh dimensions - command updates the dimensions in the viewport.

CAD drafting Paper space commands 3Cut viewport - command allows you to change the shape of the viewport.

CAD software Paper space commands 4Lock viewport - command fixes scales (including zoom commands) of viewport.

CAD drawing Paper space commands 5Zoom all - command inserts all the graphics from the model space into the viewport.

CAD drafting Paper space commands 6 Scale - the drop-down list allows you to select the viewport scale.
