Page Setup Manager

CAD drafting Page Setup Manager 0    Ribbon: Output – Plot > CAD software Page Setup Manager 1 Page Setup Manager

CAD drawing Page Setup Manager 2    Menu: File – CAD drafting Page Setup Manager 3 Page Setup Manager …

CAD software Page Setup Manager 4    Toolbar: Main – CAD drawing Page Setup Manager 5

CAD drafting Page Setup Manager 6 Command line: PAGESETUP

When preparing a document for printing, it is necessary to set a sufficiently large number of parameters for each layout: select the printer, specify the paper size and orientation, set the plotting scale, etc. The Page Setup Manager allows you to save plot setup parameters in the named page setups. The use of named page setups makes it possible to significantly reduce the time for preparing documents to plot due to applying previously made plot settings to new document layouts.

With help of Page Setup Manager, it is possible to create new setups, edit those previously created in the current document or imported from other documents. The page setups are assigned to each document page and are stored in a document file.

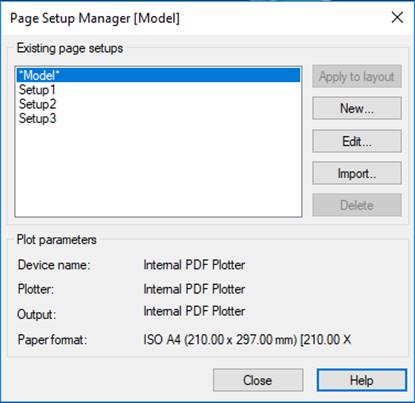

Upon starting the command, the Page Setup Manager dialog box opens. The name of the current layout is displayed in the dialog box title in square brackets:

CAD software Page Setup Manager 7

Options:

Existing page setups

In the top left part of the section the list of page setups applicable to the current layout is displayed.

In the absence of created page setups in the document, the list displays only the current layout name, marked with asterisks (for example, *Model*, *Layout1* etc.), to which created or imported page setups may be applied.

CAD drawing Page Setup Manager 8

Button to assign the page setup selected in the list to the current layout. The layout name is added with the name of assigned page setup in parentheses, for example, *Model(Setup1)*, *Layout1(Setup2)* etc.

note: When selecting the current layout in the list, the Apply to layout button is not available.

CAD drafting Page Setup Manager 9

Button for opening New Plot Set button, where it is possible to select an earlier created setup as a template and enter a name for the new setup.

CAD software Page Setup Manager 10

Button for opening Page Setup dialog box for editing settings for the selected setup.

CAD drawing Page Setup Manager 11

Button for opening a standard dialog box for selecting files, where it is possible to select a file to import one or more page setups from it.

CAD drafting Page Setup Manager 12

Button to delete the selected page setup.

Plot parameters

Displays information about the selected page setup.

Device name:

Name of the plot device assigned to the setup.

Plotter:

Type of the plot device assigned to the setup.

Output:

Physical location of the plot device assigned to the setup.

Format:

The name of paper format parameters assigned to the setup.

The paper size and orientation are displayed in square brackets [ ].

note: The name of the paper format can include the paper size, which is displayed in round brackets ( ).

note: The page setups created for the layout space are not applied to the model space. Conversely, the page setups for the model space cannot be applied to the layout space.

To create the page setup:



1.    Click the New button.

2.    In the opened New Plot Set dialog box

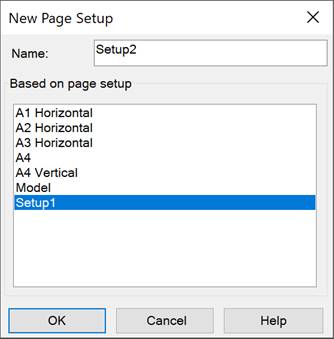

CAD software Page Setup Manager 13

in the Based on plot set section, select a previously created setup as a template.

3.    In the Name field, enter the name of a new setup.

note: By default, for a newly created page setup the following name is proposed SetupN, where N is the number of the setup being created. For convenience it is recommended to assign a user name to the new setup, which displays the format name and orientation, assigned plotter name, etc., for example, A4 (portrait) PDFCreator or A1 (landscape) CanonLargeFormat W7250.

4.    Click OK button.

5.    Specify the necessary parameters in the Page setup dialog box and click OK button.

The newly created setup is displayed in the Existing page setup list of the Page Setup Manager.

To edit the page setup:



1.    Select the setup for editing in the Existing page setup list.

2.    Click the Edit button.

3.    Make the required changes of parameters in the opened Page Setup dialog box.

4.    Click OK button.

To import the page setup:



1.    Click the Import button.

2.    In the opened standard file selection dialog box, select the type of file, folder in which it is located, and the file itself.

note: It is possible to import page setups from the drawing format (*.dwg), drawing template (*.dwt) and drawing interchange format (*.dxf).

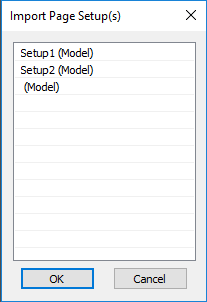

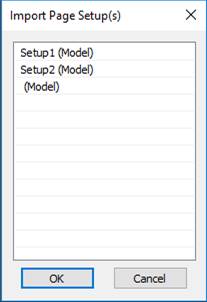

3.    Select one or more page setups in the Import page setup dialog box (using the SHIFT and CTRL keys).

CAD drawing Page Setup Manager 14

4.    Click OK button.

To delete the page setup assigned to the current layout:



1.    Select the page with an assigned setup in the Existing page setup list, for example, *Model(Setup1)*.

2.    Click the Edit button.

3.    In the Page Setup dialog box choose the None option in the available plot devices list.

4.    Click OK button to close the dialog.

5.    In the Page Setup Manager dialog box, the name of the assigned setup will be deleted from the page name, i.e. the page name for the above example will be: *Model*.

6.    Click to select the page setup (Setup1 in this case). The disabled Delete button becomes available (enabled).

7.    Click the Delete button.

8.    To close the dialog, click the Close button.

Page Setup

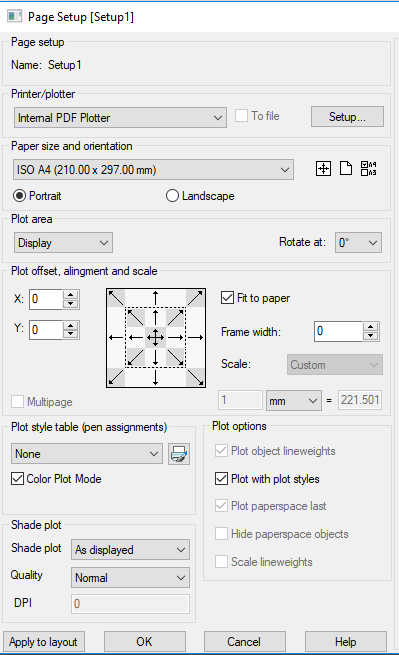

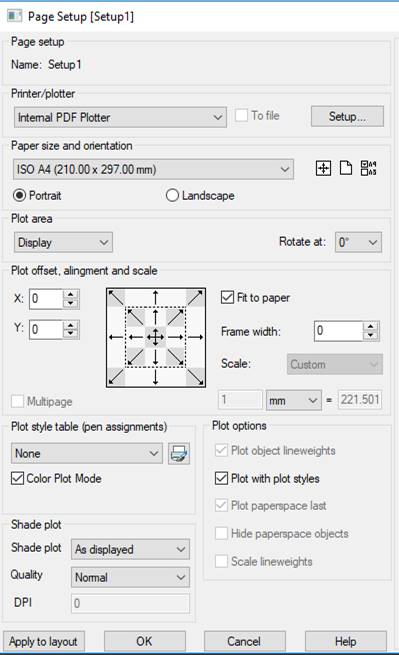

The Page Setup dialog is opened from the Page Setup Manager at creating or editing a page setup (the New and Edit buttons):

CAD drafting Page Setup Manager 15

Options:

Printer/Plotter

CAD software Page Setup Manager 16

Drop-down list that displays the available plot devices.





To file

Turns on/off the print mode into the plt-file.

When To file option is turned (checkbox is selected), clicking the Plot button (in the Plot dialog box) opens the Plot to file dialog box (standard dialog box to store files) to select the folder for storing plt-file.

CAD drawing Page Setup Manager 17

Button to open the dialog box to modify the current settings of the selected plot device.

The view of the opened dialog box and configuration settings are determined by the driver of the current plot device.

Paper size and orientation

CAD drafting Page Setup Manager 18

Portrait

Landscape

Drop-down list to select paper formats for the current plot device.

Setting the paper orientation

CAD software Page Setup Manager 19 Find the nearest paper

Button for automatic search of the optimal paper format for the specified plot area and the selected plot device from the plotting fields.

The selected optimal paper format allows you to print the defined plot area without cutting in boards.

Attention: The size of the optimal paper format selected in this way should be checked against the size of paper actually used in the plot device.

CAD drawing Page Setup Manager 20 Add custom paper size

Button to set parameters of a new paper format. Opens the Modify paper format dialog box.

CAD drafting Page Setup Manager 21 Filter paper

Button to create a set of paper formats to be included in the Paper size and orientation drop-down list. Opens the Edit paper list dialog box.

Plot area

Model          Layout

CAD software Page Setup Manager 22CAD drawing Page Setup Manager 23

Drop-down list to select the drawing area to be plotted. The list view depends on the current Model or Layout space.



Options for setting the plot area:

Display

Plots the view in the current viewport in the model space and in the current view in the layout space.

Extents

Plots the drawing’s portion that currently contains objects. All objects of the current space are plotted.

Limits

Plots the document objects within the set grid limits (Grid > Drawing limits). The option is available in the Model space.

Layout

Plots all objects located in the layout. The option is not available in the model space.

View



Plots the named view. The named view is selected from the drop-down list:

CAD drafting Page Setup Manager 24

note: If the document does not contain named views, the option is not displayed in the drop-down list.

Window

Specifies the plot area by a rectangular selection window. When selecting this option, the dialog box is temporary closed and in response to the command line prompt: Specify First Corner or [Select]: it is possible to specify the plot area on the display by indicating two opposite corners of the rectangle. The Select option allows you to specify the plot area by selecting one side of the frame that limits the paper format. In this case the size and orientation of the plot area is determined by the parameters specified in the Paper size and orientation section. After specifying the first plot area by the window, additional buttons are displayed in the dialog box:

CAD software Page Setup Manager 25

CAD drawing Page Setup Manager 26 New window print area – cancels all specified plot areas by setting a new area.

CAD drafting Page Setup Manager 27 Add window print area – adds the plot area to those already specified.

CAD software Page Setup Manager 28 Delete last print area – sequential removal of the specified plot areas one by one in the reverse order of their assignment.

Turn

Drop-down list to select a turn angle of the specified plot area. Angles of 0, 90, 180 and 270 degrees are available for selection.

Plot offset, alignment and scale

CAD drawing Page Setup Manager 29

Field to specify the offset value of the plot area relative to the lower left corner of plotted page in the X direction.

CAD drafting Page Setup Manager 30

Field to specify the offset value of the plot area relative to the lower left corner of the plotted page in the Y direction.

attention! Offset is specified when the alignment mode is disabled. To disable the alignment mode, it is necessary to click repeatedly the highlighted arrow button on the alignment icon.

CAD software Page Setup Manager 31

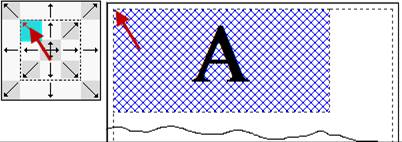

The icon with buttons of alignment of the plot area on the sides of the paper format.

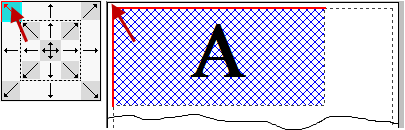

The buttons bounded by a dashed line produce a shift of the plot area to indentations determined by the plotter’s print margin.

CAD drawing Page Setup Manager 32

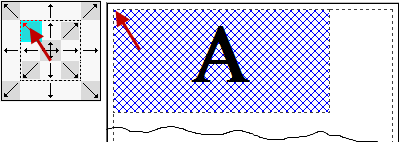

Buttons of the outer frame shift the plot area to the edges of the selected paper, margins of indentation to the plotter’s print margins are ignored.

CAD drafting Page Setup Manager 33

The central button CAD software Page Setup Manager 34 controls the automatic determination of offsets in X and Y direction so that the drawing is located in the page center (automatic drawing centering).

Multipage

Turns on/off the multipage plot mode.

The mode is used to print large formats on printers that do not support such formats. For example, for plotting A1 format on A4 printer.

The option is available, when Fit to paper option is off.

Plot scale

Fit to paper

Turns on/off the mode of adjusting the plot area scale so that it perfectly fits the page of current format.

Frame width:

Option to set the parameter of considering weight of the frame line defining the drawing boundaries and coinciding with the plot area boundaries. When setting a parameter value equal to the frame line weight, the frame is printed without reducing its thickness.

For example, if the parameter value is equal to zero, the frame created by lines of 1 mm weight will be printed at 0,5 mm thickness.

When setting the parameter to 1 mm value, the frames will be printed at 1 mm thickness.

note: The Frame width option works only when the Fit to paper mode is on.

Scale:

CAD drawing Page Setup Manager 35

Drop-down list to select the standard scale values.

Selecting measurement units (inches or mm) and setting the plot scale.

Plot style table

CAD drafting Page Setup Manager 36

Drop-down list to select the plot style table.

Color Plot Mode:

Manages the display of plot style tables in the drop-down list for selecting the plot style table.

When the checkbox is switched on, the list displays the color plot styles (*.ctb), when the checkbox is off – the named ones (*.stb).

CAD software Page Setup Manager 37

Button to open the Plot Style Table Editor dialog box to edit the specified plot style table or create a new one.

Shaded viewport

Shade plot:

Drop-down list to select the plotting option for shaded and rendered 3D models.

Available options are:

·         As displayed – Objects are plotted as they are displayed on the screen.

·         Wireframe – Only objects in wireframe are plotted, regardless of the way they are displayed on the screen.

·         Hidden – Hidden lines of objects are not plotted, even if they are displayed on the screen.

·         Rendered – Plots the objects as rendered, regardless of the way they are displayed on the screen.

Quality:

Drop-down list to select quality options for plotting shaded and rendered viewports of 3D models.

Available options are:

·         Draft – Plots objects in a wireframe mode.

·         Preview – Plots objects at the ¼ of the current plot device resolution (maximum – 150 dpi).

·         Normal – Plots objects at the ½ of the current plot device resolution (maximum – 300 dpi).

·         Presentation – Plots objects at the current resolution of the plot device (maximum – 600 dpi).

·         Maximum – Plots objects at the current plot device resolution with setting no maximum limit.

·         Custom – Plots objects at the resolution, which is specified in the DPI box. The resolution specified by the user cannot exceed the current resolution of the plot device.

DPI:

Field to specify the plot resolution.

The option is available, when selecting the Custom option in the Quality list.

Plot options

The section to specify options that allow switching between ready-configured plot-style (*.ctb or *.stb files) and customized settings for the display properties of objects in the current document.

Plot object lineweights

Turns on/off the plot mode considering the lineweights assigned to objects and layers.

Plot with plot styles

Turns on/off the plot mode considering the plot styles assigned to objects and layers.

When selecting this option, the Plot Object Lineweights option is also enabled automatically.

Plot paper space last

Turns on/off the mode to plot model space objects first.

Hide paper space objects

Turns on/off the mode that applies Hide command to objects in the paper space viewport.

The option is available only for a layout space.

The option is active only when plotting and in the preview of plot results.

Scale lineweights

Turns on/off the mode of scaling lineweights to plot from the Layout space.

Lineweight changes in accordance with the scale specified in the Scale section.

Buttons to manage the specified plot setups

CAD drawing Page Setup Manager 38

Button to apply the named page setup to the current layout.

The name of the page setup applied to the layout is displayed when plotting this page in the title of the Plot dialog box.

CAD drafting Page Setup Manager 39

Button to save settings and move to the Page Setup Manager dialog box.

CAD software Page Setup Manager 40

Button to close the dialog without saving the plot setups.

Saving Plotter Settings to PC3 File

The drop-down list in the Plotter section contains a list of all plotters registered in the system. Their parameters are edited by clicking Setup button to the right of the list.

CAD drawing Page Setup Manager 41

The settings dialog that opens is individual for each printing device. When you finish changing the settings, when you close the dialog, you will be prompted to save the settings as a separate file with the PC3 extension so that you can reuse it.

CAD drafting Page Setup Manager 42

After that, the saved configuration can be selected in the list of printers.

CAD software Page Setup Manager 43

A file of the same name with the PC3 extension will appear in the plot configuration files directory.

Such plotter configurations can be transferred to different computers and shared among team members, provided that they use the same driver version and plotter model. If you update the plotter driver version, the old PC3 file may not work. Plot configurations for system plotters can also be shared, but should be in the same version of the operating system.

Paper Formats

Modifying and Adding the Paper Formats

The composition of paper formats list of the Paper size and orientation section in Plot and Page Setup dialog boxes depends on formats specified in the Papers section of Options dialog (the Tools menu– Options). In the same section it is possible to change the existing paper format or create a new one.

To edit the list of paper formats:



1.    Enter the Papers section of the Options dialog box.

2.    Set the label of formats that should be displayed in the list:

CAD drawing Page Setup Manager 44

To add a new paper format:



1.    Select the Papers section name of the Options dialog box. To create a new paper format based on the existing one, select the required format in the section list.

2.    Click the Add button.

3.    In the opened Add paper format dialog box:

·        specify the new format name;

·        select the measurement units;

·        enter the values of format width and height;

·        if necessary, set size of the internal frame: set the Internal frame mark and specify the values of margins from the format edge in the Frame margins section:



CAD drafting Page Setup Manager 45

note: The plot area sizes are set depending on the specific plot device used, as they are determined by the plot device manufacturer.



note: When setting the paper size, it is necessary to consider the minimum and maximum acceptable sizes for the specific plot device used, which are also determined by the plot device manufacturer.

4.    Click OK to close the dialog box.

5.    Click OK to close the Options dialog box.

To modify a paper format:



1.    Enter the Papers section of the Options dialog box.

2.    Select the format to be modified.

3.    Click the Modify button.

4.    In the opened Modify paper format dialog box, repeat actions of 3-5 items from the previous section. You should not change the format name.

The newly created paper formats are displayed in the Paper size and orientation drop-down list in the Plot and Page Setup dialog boxes after selecting a specific plot device.

attention! The paper formats for which the specified sizes are more or less than those acceptable for a specific plot device are not displayed in the Paper size and orientation list for this device.

Editing the List of Paper Formats

The content of the drop-down list for selecting paper formats of the Paper size and orientation section in the Plot and Page Setup dialog boxes can be edited.

The CAD software Page Setup Manager 46 Filter paper button of the Paper size and orientation section opens the Edit paper list dialog box, in which it is possible to disable the unused formats, enable additional ones or delete paper formats that belong to the custom formats list.

The dialog box contains the list of all available paper formats that can be included in the list.

CAD drawing Page Setup Manager 47

Options:

State

CAD drafting Page Setup Manager 48

Paper format belongs to the list of formats of the selected plot device.



CAD software Page Setup Manager 49

Paper format belongs to the list of custom formats nanoCAD.



CAD drawing Page Setup Manager 50

Format is included in the list.



CAD drafting Page Setup Manager 51

Format is deleted from the list.

Paper

Names of standard and custom paper formats.

Size

Sizes of standard and custom paper formats.

To edit the list of paper formats:



1.    Select the format in the dialog box.

2.    Select/clear the checkbox CAD software Page Setup Manager 52 in the State column or use the dialog buttons:

CAD drawing Page Setup Manager 53 Turn off paper
CAD drafting Page Setup Manager 54 Turn on paper
CAD software Page Setup Manager 55 Delete custom paper

note: Paper formats that belong to the current plot device and are marked with CAD drawing Page Setup Manager 56 cannot be deleted.

To edit the status or delete several formats at once use the multiple selection:

·         While holding down SHIFT key, select all formats located between the first and the last left click.

·         While holding down CTRL key, it is possible to add any format from the list by left click.

attention! Editing in the Paper formats list editor dialog box is synchronized with the Papers list of the Options dialog box (the Tools menu – Options). The custom formats are deleted simultaneously from all format lists.

Info: NanoCAD is an easy-to-use, inexpensive, and yet powerful, CAD app for personal computer, that delivers a great user experience by providing high performance, full capability, a classic interface and native.dwg format support. nanoCAD has been built to deliver design and project documentation for all engineering purposes. nanoCAD includes a full suite of basic and advanced CAD tools for 2D/3D drawing and creating industry-standard DWG-compatible CAD files. Our freeware provides progressive, collaborative and customizable features to improve your efficiency, and includes a number of API's, allowing anything from routine task automation to complex CAD application development. You may download nanoCad for free, using the links below, and buy later, in case you like it.
