Option 3. Making projections in paper space

The most convenient way to design drawings projections. All images of objects executed in one-to-one scale model space.

Border and title stamp inserted in 1:1 scale in paper space.

Scale for each species, cut or section is given in the floating viewport in paper space. No need to convert the nominal values of dimensional numbers. Floating viewport - a kind of lens with a predetermined magnification (scale) of the portion of the drawing.

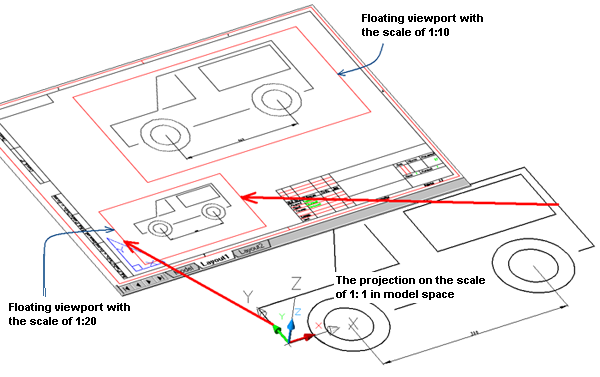

Border and two floating viewports placed in paper space

Particulars of

Scale factor when dimensioning for each species is taken into account automatically.

Especially when printing

Frame with projections printed in 1:1. scale in nanoCAD Construction 25 frame and title block inserted in model space or sheet at a scale of 1:1.
