Option 2. Making projections in model space

Features insert formats

The frame is inserted into the space pattern in the scale of 1:1.

Main types, made a scale of one to one in the model space scale when placed on a frame with a title block.

Particulars of

The magnitude of arrowheads, dimension text height and other text refer to all types are specified in a scale of 1:1. When dimensioning must take into account only the scale factor of the form in which they are applied.

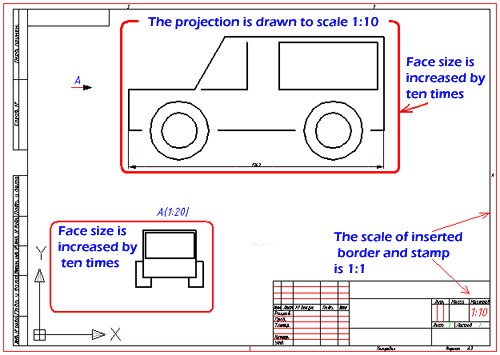

Example of drawing. Frame in a 1:1 projection in a given scale

Especially when printing

Under this option, registration in model space frame with projections printed at a scale of 1:1. This variant of design drawings in model space adopted in Construction Site 25.
