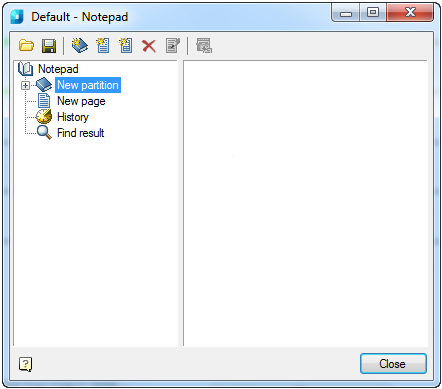

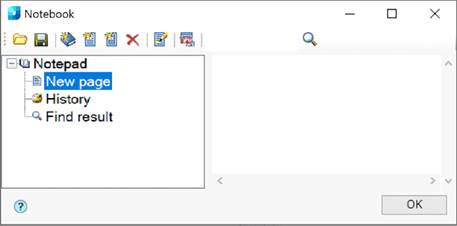

Notepad

Open from file:

Opens the Notepad file saved on the disk.

Save to file:

Saves changes in the Notepad file.

Add partition:

Adds partitions.

Add page:

Adds page.

Add table:

Adds table. When you run the command, the Create new table dialog appears. In the dialog, enter the table name and its size.

Delete tree item:

Deletes the selected tree item.

Edit page:

Switches on page and table editing mode.

This button is available if a page or table is selected in the tree.

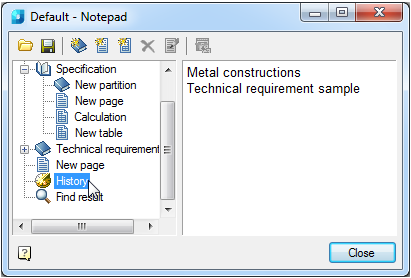

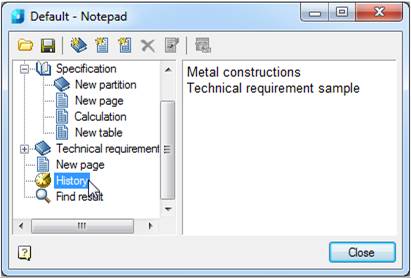

When editing a page, the tree becomes unavailable and the edit toolbar buttons show in the right part of the dialog box:

or the table:

Select/Transfer selected text:

Transfers the selected text (table cells) into the edited table cell cursor position in technical requirements and technical characteristics.

Search

Search for a text string in your notebook. To search for the required entries, enter the expression in the text field and click the  Search button.

Add technical condition:

Adds technical condition.

Delete technical condition:

Deletes technical condition.

Superscript:

Turn on/off the input mode for upper index.

Subscript:

Turn on/off the input mode for bottom index.

Insert fraction:

Opens the Fraction dialog box to set the numerator and denominator of the fraction:

The switch  controls the display of the fraction line.

Insert tolerance:

Opens the Fit dialog box.

Insert material:

Opens the Material dialog box.

Calculator:

Opens the Calculator dialog box.

Insert a special symbol

Opens a panel for selecting and inserting special characters.

Insert row

Inserts row.

Delete row

Deletes row.

Insert column

Inserts column.

Delete column

Deletes column.

Rename column

Opens the Column properties dialog box, in which you can set the width and name of the selected column:

Note

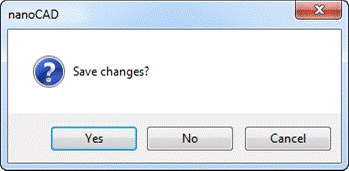

When you use the Notepad for the first time, it is recommended to save the new notepad in a separate file using the Save button.
