Note for Multilayered Constructions
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Note for Multilayered Constructions
Ribbon: Home, Annotate – Leaders >
Multilayered construction note
Menu: Draw – Notes >
Notes for multilayered designs…
Toolbar: Utilities, Notes –
Command line: NOTEM

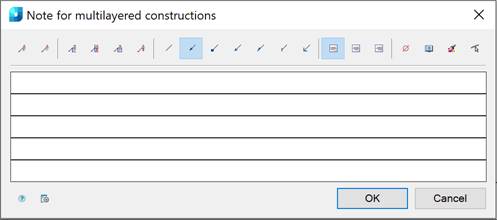

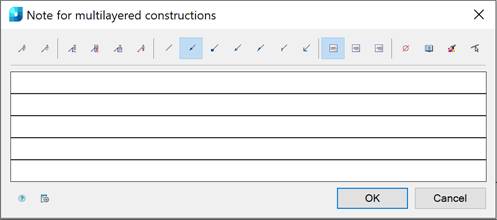

This command opens the Note for multilayered constructions dialog box to set the note options:
Options:
Use the icons to add/remove text input fields and to add border:
|
|
Add an additional input field. |
|
|
Remove the input field where the cursor is located. |
|
|
Managing multiline text output above the leader. The transition to another line is performed by the CTRL+ENTER key combination. |
|
|
Line on first string. |
|
|
Framing the text under the leader. |
|
|
Managing output in a multiline note of the last line without the leader. |
Use the icons to select the style of the extension line:
|
|
|
None. |
|
|
|
Arrow. |
|
|
|
Point. |
|
|
|
Open arrow. |
|
|
|
Half-arrow. |
|
|
|
Oblique. |
|
|
|
Right angle. |
Use the icons to select the text alignment method:
|
|
|
By left edge. |
|
|
|
By center. |
|
|
|
By right edge. |
Other icons:
|
|
The Insert special symbol icon opens the panel with the table of special symbols, to select and insert them at the current cursor position in the text input field. |
|
|
The Notepad icon opens the Notepad dialog box. |
|
|
The Match properties icon temporarily closes the dialog box to specify the inserted leader whose properties should be copied and applied to the newly-created leader. |
|
|
The Select line icon is used to switch the comb orientation parallel to the specified line on the drawing. The icon is available when you edit the comb leader note inserted into the drawing. |
|
|
The Options button opens the nanoCAD Design Settings dialog box – Symbols tab |
By default, the Note for Multilayered Constructions contains 5 input fields.
The
Add string and
Remove string commands are used to edit the number of fields.
Right-click in the text field and choose the required menu item:
When you open the context menu on a leader arrow (without selecting the leader), a dialog box for selecting the arrow type will appear:
To create a note for multilayer constructions:
The Show dialog before inserting the object option is enabled
1. Run the command.
2. In the Note for Multilayered Constructions dialog box, select the required note options.
3. Enter the required text into the text fields.
4. Click OK.
5. Specify a point on the object to which the leader arrow will be directed.
6. Specify the landing position on the drawing.
The Show dialog before inserting the object option is disabled
1. Run the command.
2. Specify the point on the object to which the leader arrow will be directed.
3. Specify the landing position.
4. In the Note for Multilayered Constructions dialog box, select the required note options.
5. Enter the required text into the text fields.
6. Click OK.
