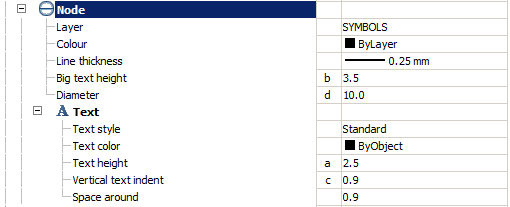

Node

Layer

Selection of the layer on which is located the node designation.

By clicking on the ellipsis to open the dialog "Table layers", where you can configure the layer.

Colour

The color of a node designation lines.

Line thickness

The thickness of the unit designation lines.

Diameter (d)

Text

Text style

Text style node designation.

text height (a)

When the value of unfilled "Page" at installation site designations.

Text color

The color of the text node designation.

Vertical text indent (c)

Big text height (b)

When you empty the meaning of "Page" at installation site designations.
