Creating a New Raster Image

CAD drafting Creating a New Raster Image 0 Ribbon: Raster – File – New > CAD software Creating a New Raster Image 1 New Image

CAD drawing Creating a New Raster Image 2 Menu: Raster – CAD drafting Creating a New Raster Image 3 New Image

CAD software Creating a New Raster Image 4 Toolbar: Raster – CAD drawing Creating a New Raster Image 5

CAD drafting Creating a New Raster Image 6 Command line: NEWRASTER

Creates a new (dataless) raster image and inserts it into the current document.



1.       Run the New Image command.

2.       Specify the parameter in the New Image dialog.

3.       Click OK.

4.       Specify the insertion point for the new image in the current drawing.

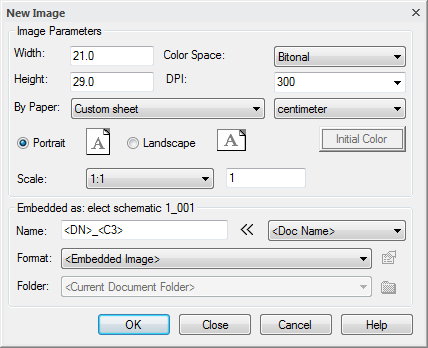

The New Image dialog options.

CAD software Creating a New Raster Image 7

The list and setting of parameters are completely identical to the corresponding parameters of the New Image from Selection command.
