Mechanical note

CAD drafting Mechanical note 0Main menu:  Draw - Notes - CAD software Mechanical note 1Mechanical note.

CAD drawing Mechanical note 2Ribbon: Annotate - Leaders >CAD drafting Mechanical note 3Mechanical note.

CAD software Mechanical note 4Command line: SPNOTE, NOTE.

CAD drawing Mechanical note 5

Procedure

  1. Call the command.

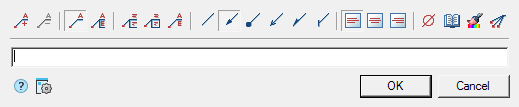

  2. If the option "Show dialog before inserting objects" is active, the "Mechanical note" dialog opens. In the "Mechanical note" dialog box, enter text and define the note options. Click "OK".
  3. Pick a point on the object (position of the leader arrow).
  4. Place a note leader in the drawing.
  5. If the "Show dialog before inserting objects" option is disabled, the "Mechanical note" dialog will open.In the "Mechanical note" dialog box, enter text and define the note options. Click "OK".
  6. Note will be biuld.

Menu

  • CAD drafting Mechanical note 6Add string - command adds an extra input field;
  • CAD software Mechanical note 7Remove string - command deletes the input field where the cursor is located;
  • CAD drawing Mechanical note 8Simple note - command toggles the display of the note;
  • CAD drafting Mechanical note 9Multiline note - command toggles the display of the note;
  • CAD software Mechanical note 10Multi-line text - the switch controls the display of multi-line text on the shelf;
  • CAD drawing Mechanical note 11Frame - text under the shelf is framed;
  • Type arrows:
    • CAD drafting Mechanical note 12None,
    • CAD software Mechanical note 13Arrow,
    • CAD drawing Mechanical note 14Point,
    • CAD drafting Mechanical note 15Open arrow,
    • CAD software Mechanical note 16Half-arrow,
    • CAD drawing Mechanical note 17Oblique;
  • Align text horizontally;
    • CAD drafting Mechanical note 18By left edge
    • CAD software Mechanical note 19By center
    • CAD drawing Mechanical note 20By right edge
  • CAD drafting Mechanical note 21Insert special symbol - the command allows you to insert a special character into the input field;
  • CAD software Mechanical note 22Notebook - the command allows you to insert data from a notebook into the field;
  • CAD drawing Mechanical note 23Match properties - command copies appearance parameters from another object;
  • CAD drafting Mechanical note 24Add extension line - the command allows you to add an additional note line;
  • CAD software Mechanical note 25Global options - note settings;

Context menu

The context menu opens in the input field. View Context menu entry fields.

Fields

By default, "Mechanical note" contains one text box for the label above the leader flange.

Using the CAD drawing Mechanical note 26"Simple note" and CAD drafting Mechanical note 27"Multiline note" menu commands, you edit the presence of additional shelves.

Use the CAD software Mechanical note 28"Add string" and CAD drawing Mechanical note 29"Remove string" menu commands to edit the number of leader ledges. When using a simple note, these commands control the presence of text under the shelf.

Note:

Hotkeys are available for the CAD drafting Mechanical note 30"Add string" command. "Ctrl + Enter" - adds a shelf below the selected shelf. "Shift + Enter" - adds a shelf above the selected shelf.

The CAD software Mechanical note 31"Multi-line text" option allows you to display multiline text on the shelf. When this parameter is enabled, the transition to another line is performed by the "Ctrl + Enter" key combination.

CAD drawing Mechanical note 32

CAD drafting Mechanical note 33

Arrow type selection context menu

When you call the context menu on the note arrow (without selecting the note), a dialog box for selecting the arrow type will appear.

CAD software Mechanical note 34
