Isolate All Features

Isolating All Features

CAD drafting Isolate All Features 0      Ribbon: Point Clouds – Managing Features > CAD software Isolate All Features 1 Isolate All Features

CAD drawing Isolate All Features 2       Menu: Point clouds – Managing Features > CAD drafting Isolate All Features 3 Isolate All Features

CAD software Isolate All Features 4       Toolbar: Point clouds > CAD drawing Isolate All Features 5 Isolate All Features

CAD drafting Isolate All Features 6 Command line: NPC_ISOLATE_ALL_FEATURES

The command displays all features, hiding unrecognized parts of the cloud. If any cloud features have been hidden, their display is restored.

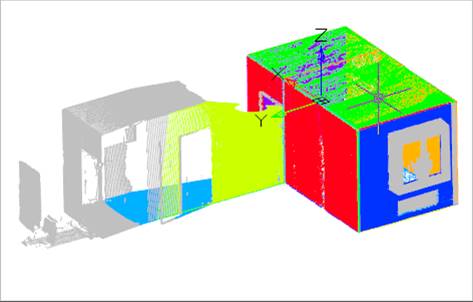

CAD software Isolate All Features 7

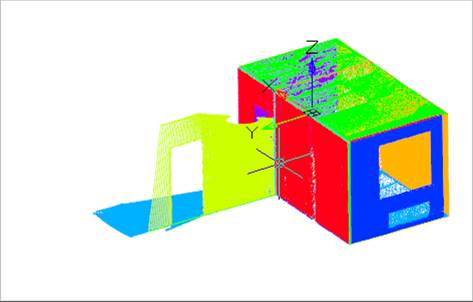

CAD drawing Isolate All Features 8



↑
