Insert Map Underlay

CAD drafting Insert Map Underlay 0       Ribbon: Insert – Maps > CAD software Insert Map Underlay 1 Insert map

CAD drawing Insert Map Underlay 2       Ribbon: Topoplan – Maps > CAD drafting Insert Map Underlay 3 Insert Map Underlay

CAD software Insert Map Underlay 4      Menu: Topoplan – Maps > CAD drawing Insert Map Underlay 5 Insert Map Underlay

CAD drafting Insert Map Underlay 6 Command line: MAPVIEW



Inserts map underlay into the current drawing.

CAD software Insert Map Underlay 7

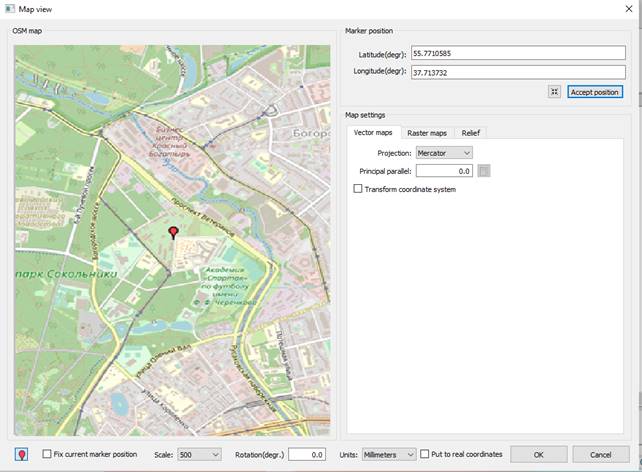

In the representation window, select the desired area of import. The map is shifted with the left mouse button pressed, and scaled by rotating the wheel.

After selecting the desired area, the following settings are required at the bottom of the dialog box:

CAD drawing Insert Map Underlay 8

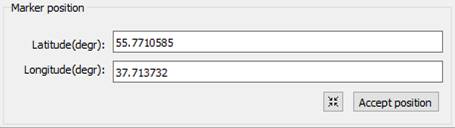

1.      Specify position of the marker relative to which insertion in the drawing will be made. To do this, press the button for setting the marker CAD drafting Insert Map Underlay 9 at the bottom of the dialog box. It is fixed in the pressed state. After that the marker’s position on the map is indicated by left double-click. In addition, the position can be specified by manually entering coordinates in the Marker position section.

CAD software Insert Map Underlay 10

2.      Checking the Fix current marker position box fixes the last set position for all windows.

3.      Set the map scale, rotation angle of the inserted fragment relative to the marker (positive angle indicates counterclockwise rotation) and drawing units.

4.      On the Vector maps tab, select the projection of map representation in the drawing from the drop-down list Projection: Mercator, Gauss-Krueger or UTM.

CAD drawing Insert Map Underlay 11

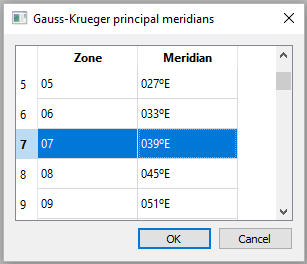

5.      When selecting rectangular projections, specify the principal meridian of the zone. For the current marker position, the field is filled automatically, but you can select by the zone number from the corresponding dialog called by CAD drafting Insert Map Underlay 12 button.

CAD software Insert Map Underlay 13

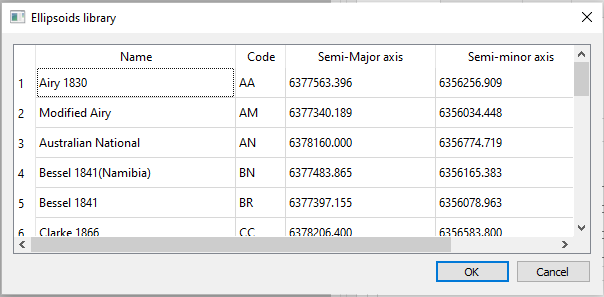

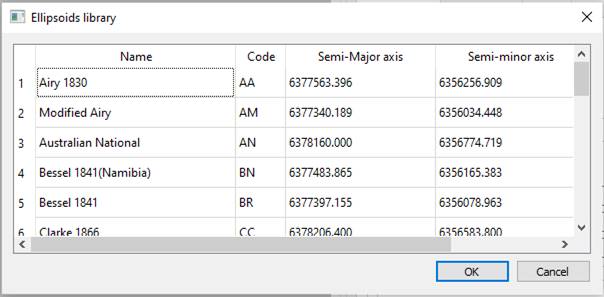

6.      If it is necessary to recalculate coordinates from WGS84 ellipsoid, which represent the OSM service data, check the Transform coordinate system box. Then select the target transformation ellipsoid from the ellipsoids library opened by CAD drawing Insert Map Underlay 14 button.

CAD drafting Insert Map Underlay 15

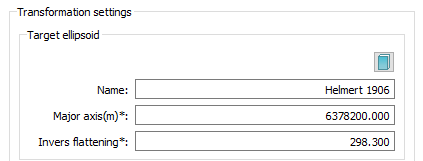

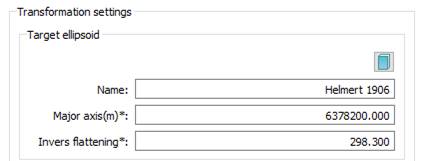

Fields of the Target ellipsoid section will be filled automatically:

CAD software Insert Map Underlay 16

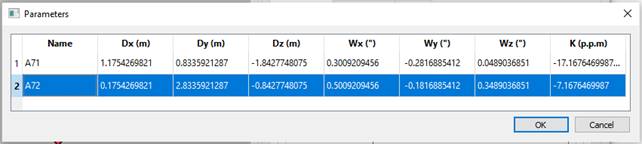

7.      Then specify parameters of recalculation from WGS84 to the target ellipsoid. Seven-parameter Helmert transformation is used for recalculation. Upon calling the Helmert parameters dialog by CAD drawing Insert Map Underlay 17 button, select the required set of parameters:

CAD drafting Insert Map Underlay 18

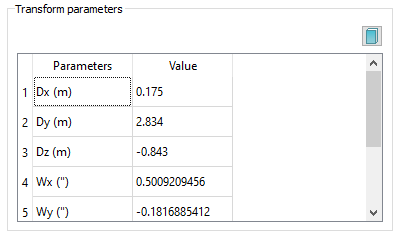

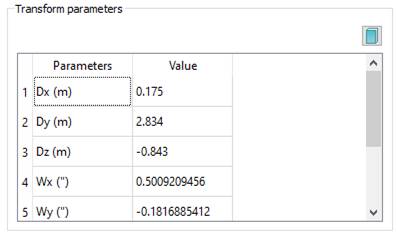

Fields of the Transform parameters section will be filled automatically:

CAD software Insert Map Underlay 19

The transform parameters are selected from the file transform_params.csv, which is located in the folder %nanocad%/UserDataCache/maplib/LIB and can be edited for adding new transformation parameters.

File fragment:

H7,A71,1.1754269821,0.8335921287,-1.8427748075,0.3009209456, -0.2816885412,0.0489036851,-17.1676469987

where:

·         H7 – sign of transformation;

·         A71- name (user identification);

·         next three fields Dx, Dy, Dz – center offset relative to WGS84 center in meters;

·         next three fields Wx, Wy, Wz – rotation of axes relative to WGS84 angular seconds;

·         last field – scale factor in p.p.m. units (parts per million)- it is 1/1000000 from the factor’s complement to one.



After setting all necessary properties, click the Insert button and specify the insertion point in the drawing. The marker position will be placed at this point.

CAD drawing Insert Map Underlay 20

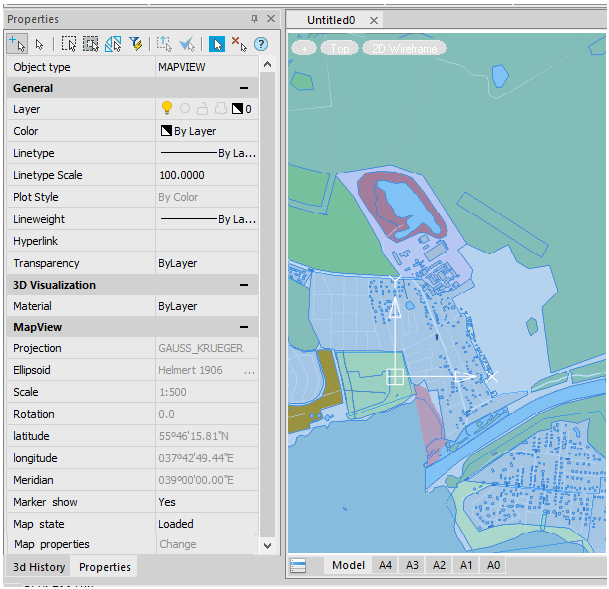

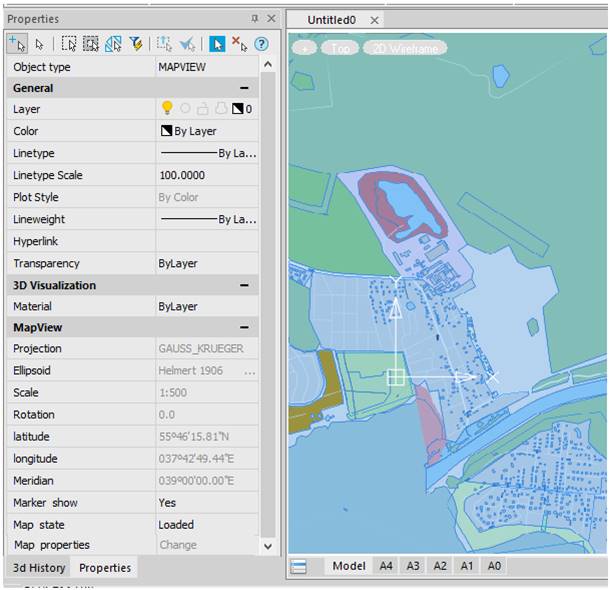

On the Properties toolbar, the following properties are displayed for vector map underlay: projection, ellipsoid, marker show, scale, rotation.

The marker display can be disabled (Marker show parameter).

Map underlays can be temporary unloaded, if necessary (Map state parameter). In this case, only the outline of underlay will be displayed in the drawing, without its content. The UNMAPVIEW REMAPVIEW commands allow group operations of uploading and downloading map underlays.

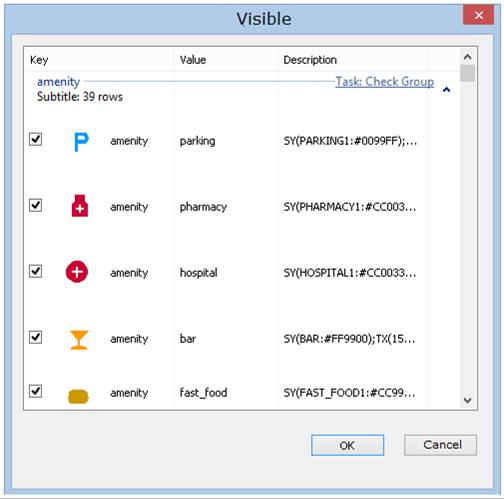

For loaded vector maps, a choice of displayed layers is available. To do this, click the button to the right of Map properties item.

CAD drafting Insert Map Underlay 21

CAD software Insert Map Underlay 22

To disable a layer, clear a box. Names of displayed objects and instruction for their display are given in columns on the right. Object display settings files are located in the folder UserDataCache/maplib/styles



Raster maps

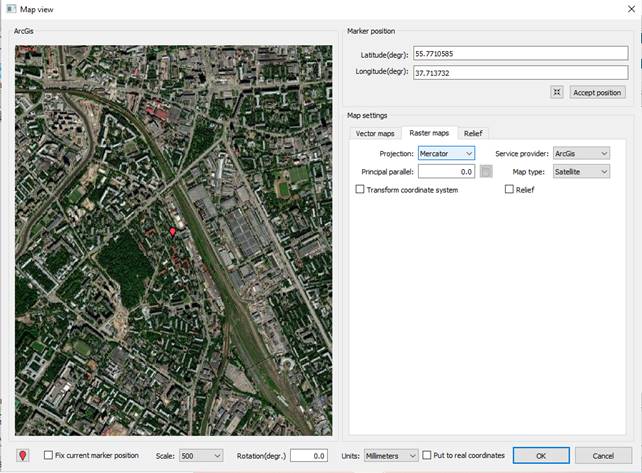

CAD drawing Insert Map Underlay 23

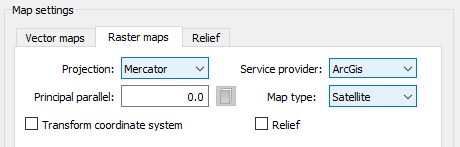

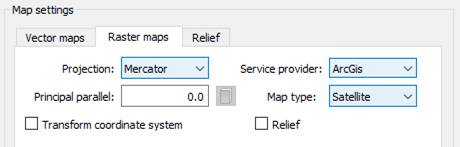

Providers of raster maps (Provider field) are several services: OpenStreetMaps, Google Maps, Yandex Maps, OSM Topo, MapBox, ArcGis, Bing.

In addition, some providers present different types of maps (Map type field): street maps, satellite, hybrid, terrain, topo.

CAD drafting Insert Map Underlay 24



Import setting is similar to that of raster maps.

Additionally, for raster maps you can specify the Relief option, which allows you to add terrain height to the raster. An image becomes a texture stretched over a 3D terrain model.

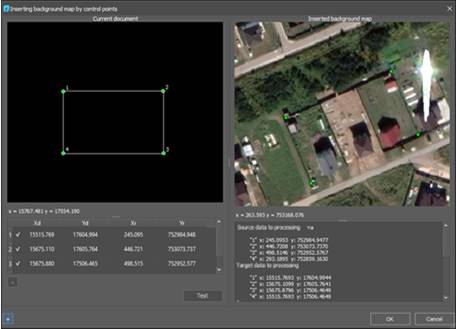

To insert raster cartographic underlays by control points, check the By control points box. After clicking the OK button, another dialog box will open, in which you will need to specify the source and resulting control pairs of points for which an attempt will be made to insert a raster map.

CAD software Insert Map Underlay 25

Stretch the preview areas of the current document (top left) and raster underlay (top right) if they are too small.



1.      Click the plus CAD drawing Insert Map Underlay 26 button.

2.      Click in the left preview area of the current document to set the first target point.

3.      Click in the right preview area of the raster underlay to mark the corresponding source point.

4.      The coordinates of the first pair of points will appear in the left part of the dialog box.

5.      Specify at least three more pairs of points. The points will change color from red to green.

6.      To delete a pair of points, select it in the table and click the minus CAD drafting Insert Map Underlay 27 button.

7.      By clicking the Test button, you can see the conversion results and the maximum error. To exclude a pair of points from the calculation, it is not necessary to delete it, just uncheck the box next to it.

8.      If the conversion result is satisfactory, click ОK.



Relief

CAD software Insert Map Underlay 28

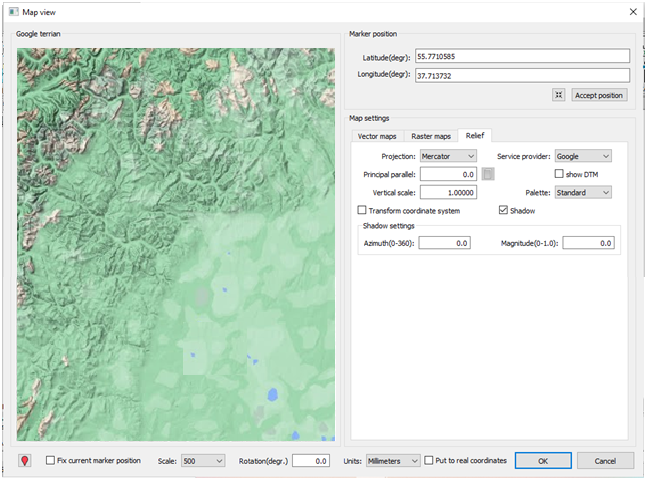

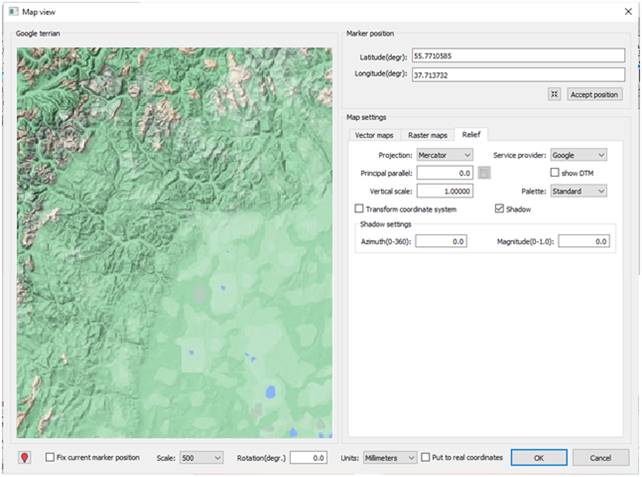

The Relief tab allows using 3D terrain model as an underlay.

CAD drawing Insert Map Underlay 29

To select the area, relief raster images of Google or satellite images of MapBox are used. The model provider is MapBox service.

In addition to standard import settings, the following are available: vertical scale of relief, selection of height color palette, shadow.

The show DTM checkbox allows displaying actual DTM in the window when selecting MapBox provider.

CAD drafting Insert Map Underlay 30

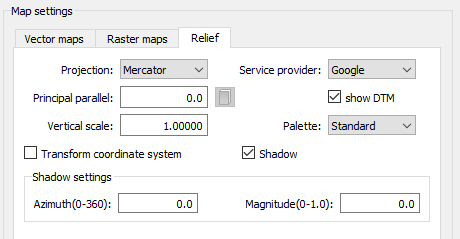

When selecting “Shadow” item, shadow parameters become available

CAD software Insert Map Underlay 31

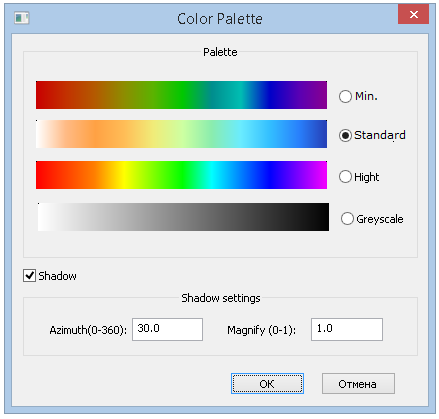

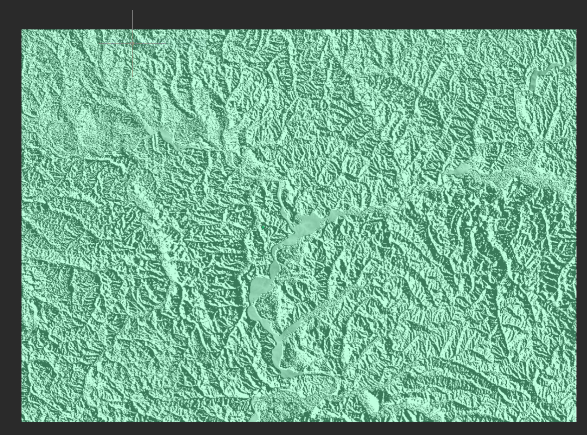

For underlays of Relief type loaded in a drawing it is possible to change the relief parameters. To do this, click the button to the right of Map properties item.
