IDF Convert

Set of tools for setting the inserted printed circuit boards in the IDF format nanoCAD Mechanica 25.

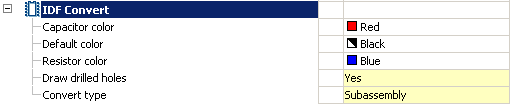

Capacitor, Default, Resistor colors

Tool selection control color of individual elements of printed circuit boards.

The color display can be selected from a standard set and set of built-in your palette.

Draw drilled holes

Shows or suppresses the holes in the printed circuit boards.

Convert type

It allows you to choose the type of the inserted printed circuit board that is displayed in the tree object manager (part, subassembly, assembly).
