Group dimension

Main menu: Dimensions >Group dimension.

Ribbon: Annotate - Dimensions >Group dimension.

Ribbon:  - Symbols >Group dimension.

Toolbar: Dimensions >Group dimension.

Context menu: Grouped - when calling any dimension.

Command line: SPDIMGROUP, DIMGROUP.

Procedure

1. Call the command;

2. Select all the objects that will participate in creating the group dimension. To complete the selection press the "Enter" key;

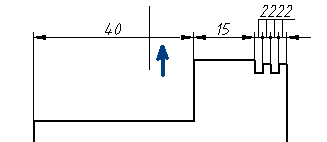

3. Specify the location of the chain of dimensions.

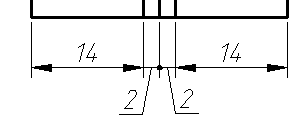

If the setting "Arrows in chains" is set to "Point", then when dimensioning a chain of small numerical dimensions, intersecting arrows are automatically replaced by dots.
