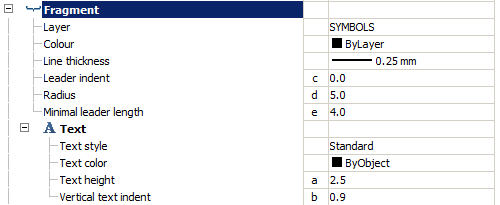

Fragment

Layer

Selection of the layer on which is placed a fragment of the designation.

By clicking on the ellipsis to open the dialog "Table layers", where you can configure the layer.

Colour

Color designations fragment lines.

Line thickness

The thickness of the lines refer to the fragment.

Leader indent (c)

Radius (d)

Minimal leader length (e)

With a length of less than the specified callout, the text will be placed without bubbles.

More than the set value	Less than the set value

Text

Text style

Text style notation fragment.

Text height (a)

Text color

The color of the text refer to the fragment.

Vertical text indent (b)
