Find and Replace Text
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Find and Replace Text
Menu: Edit –
Find and Replace …
Toolbar: Text –
Context menu of drawing
Find and Replace
Hot keys: CTRL+F
Command line: FIND
The Find and Replace command is used to find text in the document.
You can also start the command from the context menu:

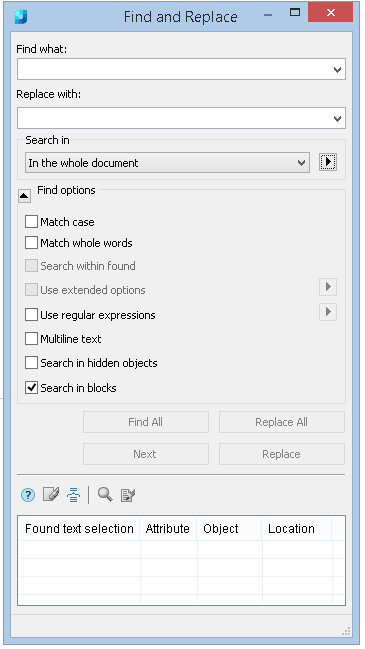

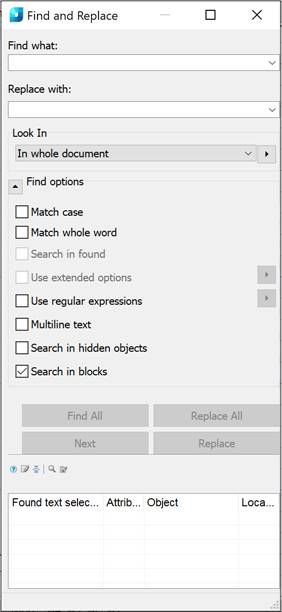

Start the command to open the Find and Replace dialog box:
Options:
Find what: |
In the Find what field, type the text to be searched for. |
Replace with: |
In the Replace with field, type the text that is required to replace the found lines. |
Look in |
Set the Look in parameter. The following options are available: · In whole document · In current space · In current selection |
|
Click the icon to open the Quick selection dialog box. |
Find options
|
This icon maximizes/minimizes the options list. |
Match case: |
If this is checked, the search is made to match the case of the letters. |
Match whole word: |
If this is checked, the search is made for whole words; that is letter combinations separated by stops or spaces. |
Search in found: |
This option is accessible after the line search has been made. It restricts the search range. |
Use extended options: |
To search in the object database. The option is available when searching the object database of some vertical applications. Click the This option is accessible when searching in the objectsbase.. |
Use regular expressions |
Enables/Disables the mode for specifying search patterns using regular expressions. Regular expressions can be entered independently or using a list. The When you place the cursor on a list line, a tooltip appears with a detailed explanation. You can use multiple regular expressions together. An expression is entered in the search field by left-clicking on the expression from the list. |
Multi-line text: |

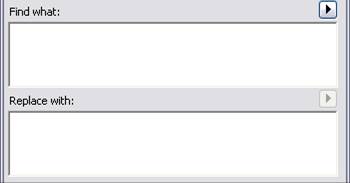

Switches on/off the multi-line text search mode. When the mode is on, the Find what and the Replace with fields take the form: |
Search in hidden objects |
Searches text in hidden objects. |
Search in blocks |
Searches text in blocks. |
|

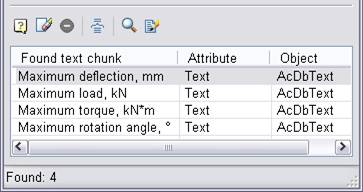

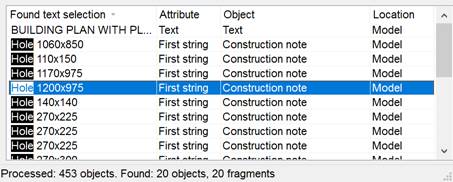

Starts the search procedure. The search result will be shown in the table: |
|
Replaces all found fragments with the new value. |
|
Starts the process of consecutive replacement of the found fragments. |
|
Passes the next found fragment in the list without replacing it with the new value. |
|
Click this icon to clear the list of found text fragments. |
|
Click this icon to group results by objects. |
|
Click this icon to show the selected text fragment in the table on the drawing or in the database of objects. |
|
Click this icon to open the Text settings dialog box to edit the found text fragment on the drawing. |

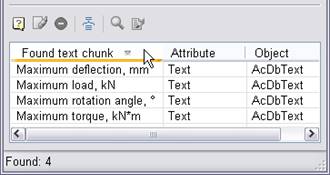

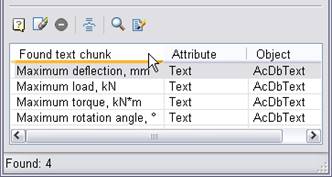

note: Left-click on the headings of the table columns of the search results to sort the found text fragments:
|
|
To find and edit the text fragment on the drawing:
1. Click the Find and Replace command in the context menu.
2. Type the text, for example, maximum, into the Find what field.
3. Click the button .

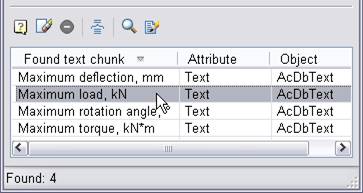

4. Select the required line in the table of search results:

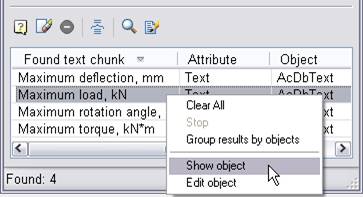

5. Double click on the required line, or click the Show object icon, or select the Show object command from context menu:

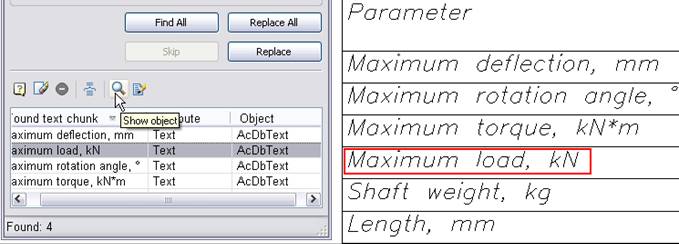

6. As a result, there is auto-panning of the found fragment that contains the selected text on the drawing:

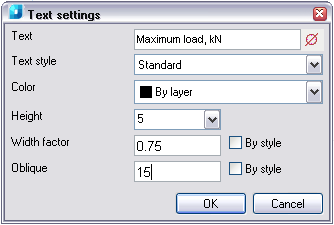

7. Click the Edit object icon or select the Edit object command from the context menu to open the Text settings dialog box:
8. Type the required changes and click OK.
