Filling in the fields of the title block

To fill the title block fields and additional graph, double-click on any line of the title block.

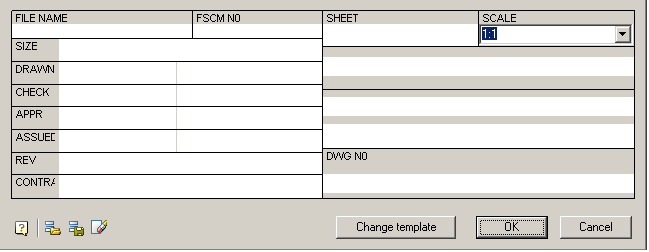

The main inscription is filled directly into the dialog box, "Stamp"

While filling in the title block previously entered information stored in the section "History" menu. To open the context menu, place the cursor in an editable field and click the right mouse button.

Recent values can be saved in the section "Recent" menu.

Automatically fill fields of the title block

Save as default

The command saves the current filling of the stamp in the memory. In the following fields will be filled automatically stamp

Load defaults

The command loads the stored filling.

Clear

The team clears stamp field

Change template

The command opens a drop-down menu to change the pattern of the stamp.
