Explode primitives

Main menu: Construction - Edit >Explode All Primitives.

Ribbon: Construction - Utilities >Explode All Primitives.

Toolbar: Edit>Explode All Primitives.

Command line: SPEXPLODEPSEUDO, EXPLODEPSEUDO.

Explodes Primitives and Pseudo-Primitives that are generated when nanoCAD graphics are overlapped by objects nanoCAD Construction .

Procedure

1. Call the command.

2. Confirm the layout of the primitives.

3. The primitives will be broken.

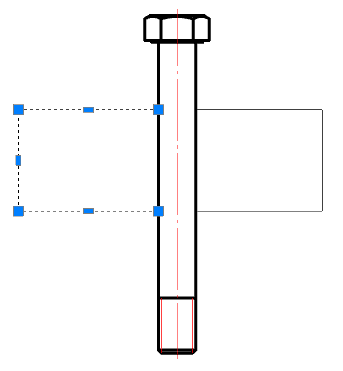

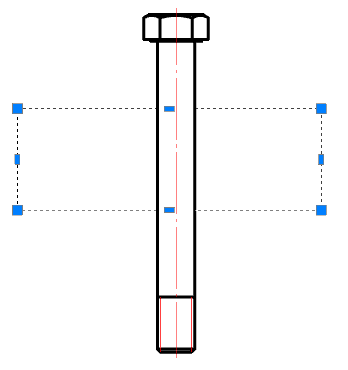

Before	After
