Example of construction of the pipeline on external cone

To the connection details automatically recognize your size and were object-dependent, the figure should be placed initially element reinforcement or opening.

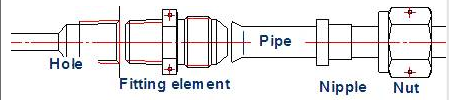

In our example, we will adhere to the following order: Insert pipe nipple and nut.

Object "pipe" can draw only pointing out any element of reinforcement.

For applying object-dependent connection details on previously placed component is enough to point to the workpiece aperture cursor pointer. Base item is highlighted in color.

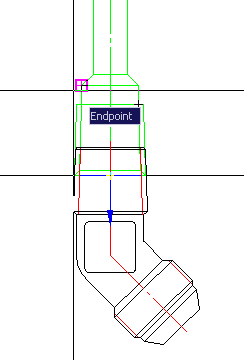

Automatic determination of size and pipe insertion point

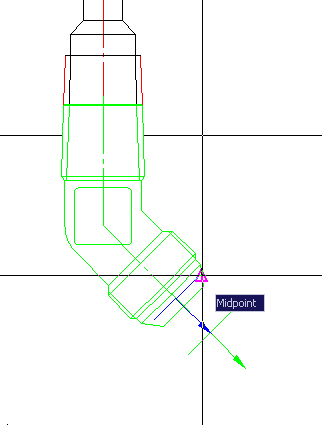

Automatic determination of size and the insertion point of the pin

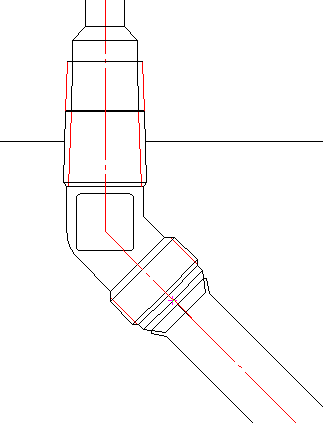

Automatic determination of size and the insertion point nuts
