Edit Polyline Segments

Editing Polyline Segments

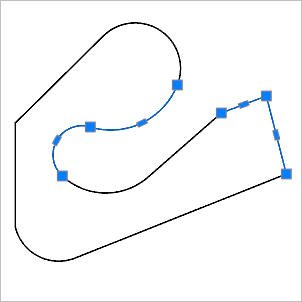

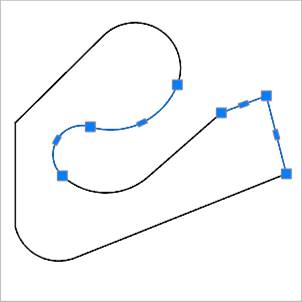

You can select individual segments of the Polyline object by holding down the CTRL key (or SHIFT+CTRL depending on the selection mode). Selected segments have functional grips that can be used to edit them.

CAD drafting Edit Polyline Segments 0   CAD software Edit Polyline Segments 1

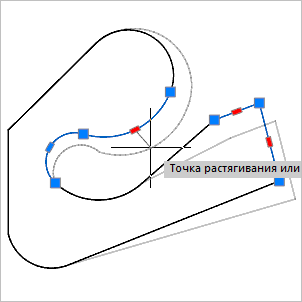

The selected segments can be moved, rotated and scaled with standard Move (MOVE), Rotate (ROTATE) and Scale (SCALE) editing commands.

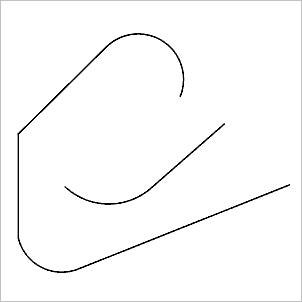

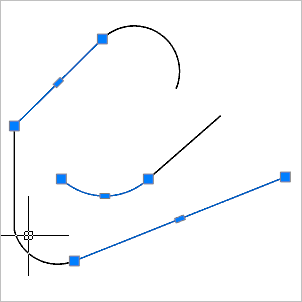

You can delete such segments, including internal ones, with the formation of remaining polyline objects.

CAD drawing Edit Polyline Segments 2   CAD drafting Edit Polyline Segments 3
