Edit Layout Viewports

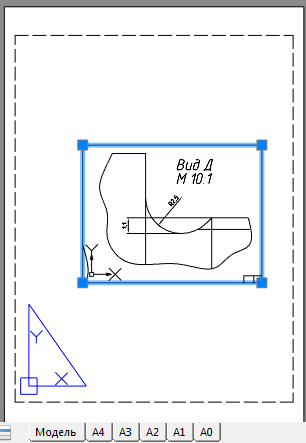

You can redefine the boundary of a layout viewport by using the grips. You can either use the multi-feature modes for grips editing of viewports which are used as the boundary of the closed polylines and splines (for more information, see «Editing viewports of paper space». The type and location of grips depend on the type of viewport or the object from which it is converted:

CAD drafting Edit Layout Viewports 0

The following editing commands can be used with the selected viewport: Copy, Move, Scale, etc.

You can copy and move the viewports to the clipboard and paste them from the clipboard.

The clipboard options can be modified in the Properties bar:

CAD software Edit Layout Viewports 1

Managing the visibility of viewport contents

To turn on/off the content display of the viewport, use the Yes or No options from the drop-down list of the On option

The objects on the turned off viewport are invisible. You cannot set as default the turned off viewport. A large number of active (with turned on visibility of content) viewports requires considerable time for regeneration. Turn off the visibility of some unused viewports to improve the regeneration of the document. You can move and resize the deactivated viewports. The deactivated viewports are not printed.

Blocking a viewport

The Display locked option allows you to block or unblock a viewport (Yes and No options are available in the drop-down list). A similar function is performed by the Lock/Unlock command from the View menu – Viewports item. Locking a viewport used to previously set the scale of a viewport remains unchanged (viewport zoom does not affect the viewport scale).

Changing a viewport scale

The Standard Scale and Scale option allows you to set or change the scale of the displayed view in a viewport. For example, if a drawing fragment is created in 1:1 scale and you want to specify 1:4 scale for it, it is necessary to enter 0.25 value in the right column of the Scale option or select 1:4 from the drop-down list of the Standard Scale option:

CAD drawing Edit Layout Viewports 2

The view scale of a viewport is not changed when you edit the boundaries of the viewport; for example, when you modify a boundary by grips. If you set the scale in the layout viewport before you access the model space, you can lock the scale to prevent changes. When the scale is locked, you cannot use zoom while you work in model space

You can clip the boundaries of the viewports (the Modify menu – ClipViewport).

The viewport allows you to edit the objects of the model space from the layout. If there are several viewports in model space, use CTRL+R combination to change current viewport. If you are in paper space, double-click within a layout viewport. You are now in model space. The selected layout viewport becomes the current viewport, and you can pan the view and change the layer properties. If you are in model space in a layout viewport, double-click outside the viewport. To switch quickly from a viewport in layout, use the CAD drafting Edit Layout Viewports 3 button in the status bar. Located next, the CAD software Edit Layout Viewports 4 button performs switching from the layout back into the viewport.

Elements to display and manage viewport parameters in the status bar:

Set parameters of viewport in a command line:

Button

Value/Action

CAD drawing Edit Layout Viewports 5

Current space – Model. Click CAD drafting Edit Layout Viewports 6 to cross to paper space.

CAD software Edit Layout Viewports 7

CAD drawing Edit Layout Viewports 8 Paper Lock

Current space – Paper. No selected viewports. Click CAD drafting Edit Layout Viewports 9 to cross to viewport.

CAD software Edit Layout Viewports 10

Current space – Paper. Viewport is selected or active.

CAD drawing Edit Layout Viewports 11 Lock viewport

Off.

Click the button to lock a viewport.

CAD drafting Edit Layout Viewports 12 Lock viewport

On.

Click the button to unlock a viewport.

CAD software Edit Layout Viewports 13

Scale of selected or active viewport.

Click the arrow to select new value.

CAD drawing Edit Layout Viewports 14

Several viewports with different scales and lock parameters are selected.
