Drawing Explorer provides full information about all objects in drawing:

·         graphic objects;

·         block references, external references, raster images;

·         parameters of drawing settings.

All changes in drawing reflect in Drawing Explorer immediately. You can separately get the information in Explorer (and also in a drawing area) about new objects and about objects changed since last saving.

You can open dialogs for editing parameters and properties of objects directly from Drawing Explorer.





The name of the current document is displayed in the root section of the dialog hierarchical structure. Which, in turn, contains two subsections: Displayed and Drawing Settings.

Objects in the current document space

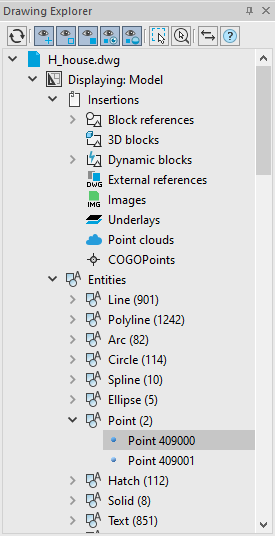

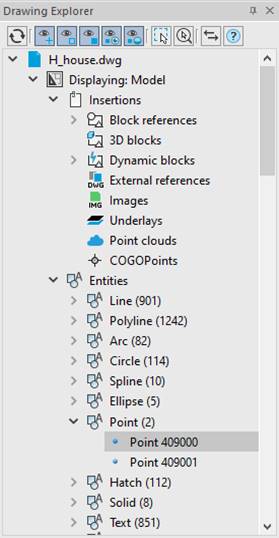

The Displayed section contains a hierarchical list of all occurrences and objects in the current document space — model space or paper space. Objects are grouped by type. The number of objects of this type in the current document space is given in parentheses.

CAD software Drawing Explorer 10

The Insertions subsection displays all Insertions of the current model or paper space: regular, dynamic, and 3D block inserts, xrefs, raster images, underlays, and point clouds.

The Entities subsection displays objects in the current space grouped by type.

If geopoints were imported to the file, a separate section will appear.

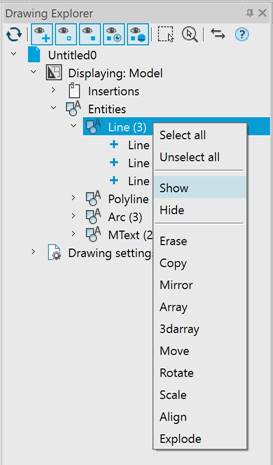

The context menu of drawing objects selected in the dialog structure contains commands for managing objects. The list of available actions depends on the type of object or group of objects. You can select objects in the drawing, pan, apply editing commands, turn display on and off in the drawing, delete.

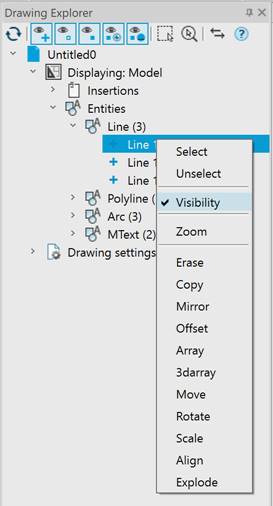

Thus, for example, you can hide or make visible both an individual object and a group of objects. To make a previously hidden object visible on the screen again, select the Visibility item. For a group of objects - the Show item.

CAD drawing Drawing Explorer 11

CAD drafting Drawing Explorer 12





Tools for control of displaying objects

At the top of the drawing explorer, there are buttons to control the display of objects in the explorer tree and in the drawing field. Initially, the tree of the drawing explorer contains a list of all objects:

CAD software Drawing Explorer 13

Refresh tree

Renew information. All opened sections will be closed.

Filters of displaying objects in the Explorer tree:

CAD drawing Drawing Explorer 14

Show created objects

Displays information about new objects in the current session of the drawing. In the Drawing Explorer such objects have a “plus” sign.

CAD drafting Drawing Explorer 15

CAD software Drawing Explorer 16

Show modified objects

Displays information about objects changed in the current session of the drawing. In the Drawing Explorer such objects have a “load” sign.

CAD drawing Drawing Explorer 17

CAD drafting Drawing Explorer 18

Show resident objects

Displays information about unchanged objects of the drawing. In the Drawing Explorer such objects have a “point” sign.

CAD software Drawing Explorer 19

CAD drawing Drawing Explorer 20

Show visible objects

Displays objects visible in the drawing in the Explorer.

CAD drafting Drawing Explorer 21

Show hidden objects

Displays objects invisible in the drawing in the Explorer.

Variants of displaying on the screen

CAD software Drawing Explorer 22

Enable selection

Objects selected in Explorer tree marks with grips in a drawing area.

CAD drawing Drawing Explorer 23

Enable zoom and selection

Objects selected in Explorer tree marks with grips and places in the center of drawing area.

CAD drafting Drawing Explorer 24

Synchronize filters with drawings

Displays objects in a drawing area according to status of filters.

·         CAD software Drawing Explorer 25 Show new objects

·         CAD drawing Drawing Explorer 26 Show modified objects

·         CAD drafting Drawing Explorer 27 Show resident objects

You can display objects hidden in the drawing field back by disabling one of these filters.

Objects of the Current Document Space

The Displaying section contains a hierarchical list of all insertions and entities of the current document space – model or paper space. The number of insertions and entities in the current document space is given in parentheses.

CAD software Drawing Explorer 28

The CAD drawing Drawing Explorer 29 Insertions subsection displays all insertions of the current model space or paper space: insertions of regular, dynamic and 3D blocks, external references, insertions of raster images, underlays, point clouds, geopoints.

CAD drafting Drawing Explorer 30

The CAD software Drawing Explorer 31 Entities subsection displays objects of the current space grouped by type.

Proxy objects (with and without graphical representation) are displayed with the CAD drawing Drawing Explorer 32 sign.

Annotative objects have the CAD drafting Drawing Explorer 33 sign:

CAD software Drawing Explorer 34

The context menu of insertions and drawing entities selected in the dialog structure contains object management commands. The list of available actions depends on the type of object or group of objects. You can select objects in the drawing, pan, apply editing commands, turn on and off display in the drawing, and delete.

Thus, for example, the following context menu commands are available for InsertionsPoint Clouds:

CAD drawing Drawing Explorer 35

The Explode the Cloud into Points (NG_EXPLODE_POINTCLOUD) command appears if you have a license for the Topoplan module.

Also, using the context menu, you can hide or make visible both an individual object and a group of objects. To make a previously hidden object visible again on the screen, select the Visibility item. For a group of objects – the Show item.

CAD drafting Drawing Explorer 36

CAD software Drawing Explorer 37

Named Objects of a Drawing

The Drawing Settings section displays the list of named objects of a drawing: layers, blocks, xrefs, etc. grouped by object type.

Objects of different types have a context menu with own set of actions.



Usually, an element can be made current in a document, deleted, renamed.



A double-click on a named object sets it current in the document.

Pictograms of current objects are marked with a colored dot.



CAD drawing Drawing Explorer 38

CAD drafting Drawing Explorer 39

note: Please, remember that when you set the selected sheet current, there will be a transition to this paper space with automatic update of the entire contents of the drawing explorer.

The context menu of the Layers group opens the Layers dialog:

CAD software Drawing Explorer 40

You can enable/disable, freeze/unfreeze and lock/unlock a layer in the Drawing Explorer by clicking on the corresponding icon while holding down the CTRL key. Changes will be immediately reflected in the drawing. Double clicking on a layer sets it as current.

Layers present on xrefs have the CAD drawing Drawing Explorer 41 icon.

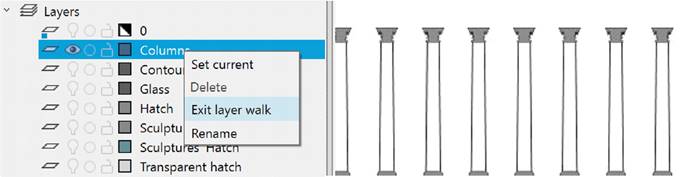

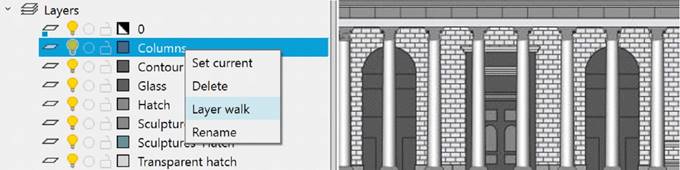

In the context menu of layers, you can turn on the layer walk mode. In this mode, only the objects of the layer currently selected in the manager will be displayed in the drawing field. Exit from the layer walk mode is also performed through the context menu of layers.

CAD drafting Drawing Explorer 42

CAD software Drawing Explorer 43

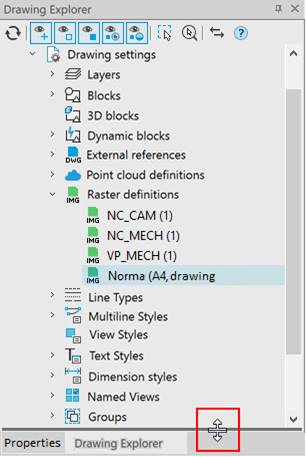

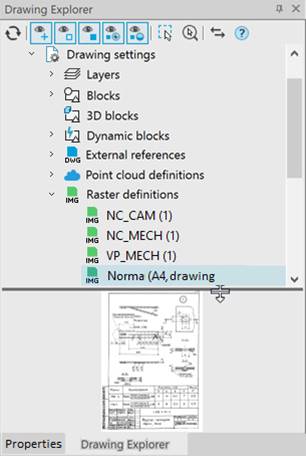

For Blocks, 3D Blocks, Dynamic blocks, and Rasters, you can open a preview in the Drawing Explorer (hidden by default). To do this, move the cursor over the bottom border of the bar and expand the preview area:

CAD drawing Drawing Explorer 44 CAD drafting Drawing Explorer 45

When you double-click on a block (raster) preview, the Insert Block (Insert Raster) dialog box opens.

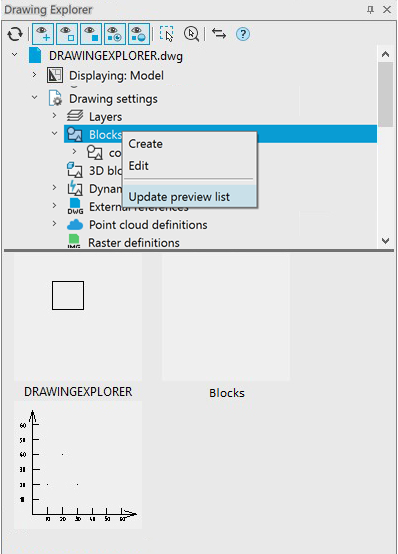

In order to create a preview of a group, select the Create preview list command in the context menu of Blocks, 3D blocks or Dynamic blocks:

CAD software Drawing Explorer 46

When changing blocks, to update the display, select the Update preview list command in the context menu:

CAD drawing Drawing Explorer 47

You can adjust the preview size and scale in the .ini file. The default size is 96x96, scale 1:1.



The context menu of the External References group allows you to:

CAD drafting Drawing Explorer 48

·         Insert external reference (XATTACH) by specifying the .dwg file;

·         Edit – reinsert references already existing in the drawing using the Drawing Explorer... toolbar (EXTERNALREFERENCES):

The external reference context menu allows you to open a file via the link in a separate tab or open the Insert external reference window to edit the insertion parameters:

CAD software Drawing Explorer 49



To manage named views, the context menu of the Named Views group allows you to Create or Edit existing named views (VIEW, -VIEW command):

CAD drawing Drawing Explorer 50

The named view's context menu allows you to Set current, Remove and Rename a view:

CAD drafting Drawing Explorer 51

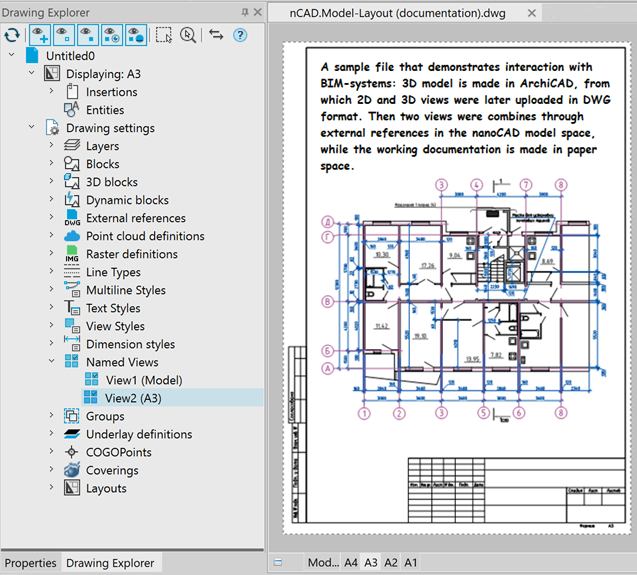

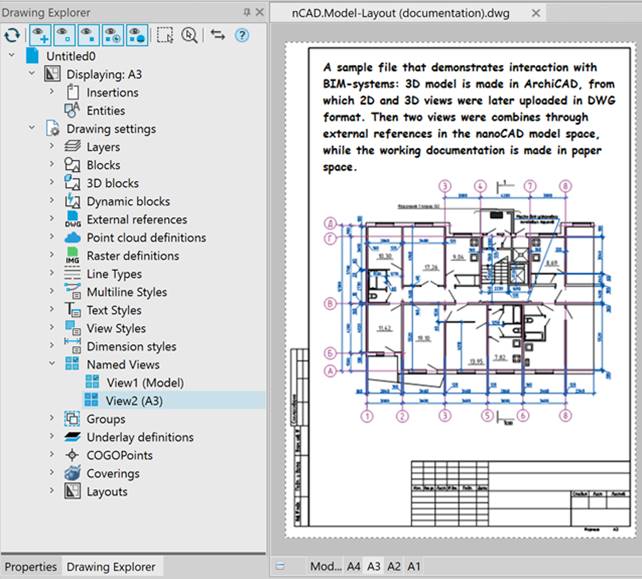

You can also set a view by double-clicking on a named view, which will auto-pan the view and display its boundaries with a red frame:

CAD software Drawing Explorer 52



Work with Groups is described in the Using Drawing Explorer Bar to Work with Groups section.

Work with Geopoints is described in the Geopoints in the Drawing Explorer section.
