Dialog "Overrides"

Shortcut: ALT+RBM (when you hover over a line or shading standard element).

It overrides the style of the individual lines in a standard cell.

Sample call

1. Insert a standard element, such as I-beams.In the properties, select the rendition of "left view" and the type of display "view with a cut".

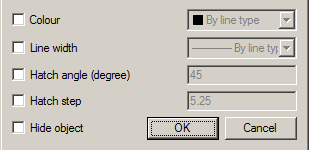

2. Do not get fooled by the hatch and press ALT+RBM. The "Overrides" dialog box.

Options

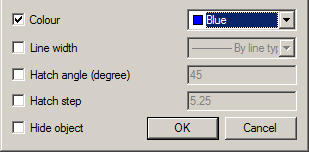

Colour -changes the color of the line.

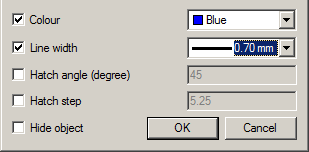

Line width - change the line width.

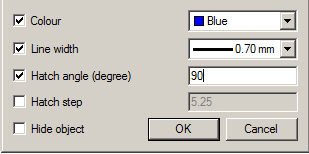

Hatch angle (degree) - controls the tilt hatch. The parameter is active only for the hatch.

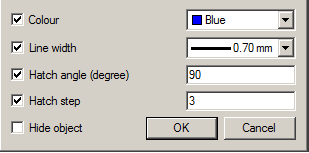

Hatch step - changes hatching step. The parameter is active only for the hatch.

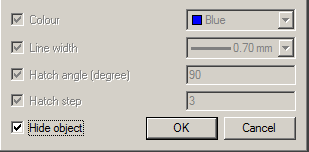

Hide object - it makes an invisible line. The other parameters are ignored.

If the setting "Show invisible lines" is "Yes", then the line will be displayed with a color according to the setting of "Color of invisible lines".
