Designation of surface texture

Main menu: Mechanical - Symbols - Surface Texture >Surface texture.

Ribbon: Mechanical - Symbols >Surface texture.

Toolbar: Surface texture (toolbar " Symbols").

Command line: MCSURF.

This command sets the sign of surface texture.

Procedure

1. Call command;

2. Pick a point on the object. When specifying the location of the specified segment is highlighted;

3. Specify the size and position of the callout. The sign is positioned normal to the surface. To place a character without a callout, press the spacebar;

4. Indicate the position of the roughness mark on the shelf. The editing dialog "Surface texture";

5. In the "Surface texture" dialog, specify the necessary parameters and click the "OK" button;

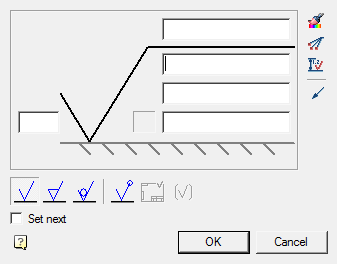

Dialog edit

Fields (4 field) - Allows you to enter surface texture values and text above and below the shelf.

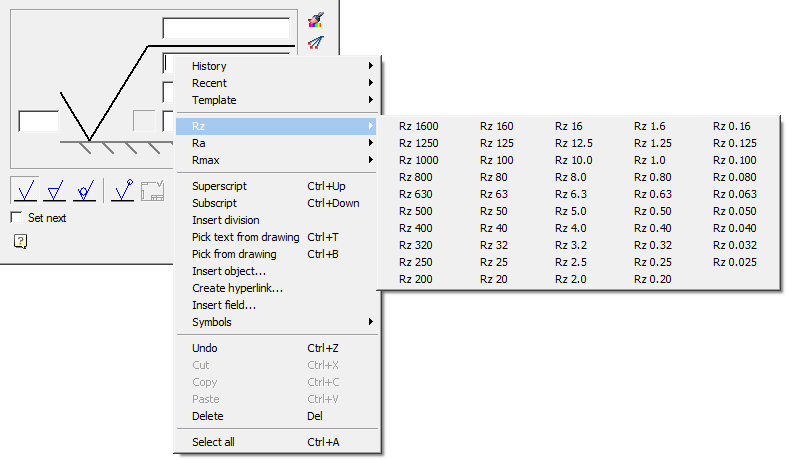

In the input field through the context menu, you can select the roughness of the series:

Button "Surface lay and orientation" - allows you to choose the surface texture orientation.

Button "Match properties" - allows you to copy design properties from another surface texture.

Button "Add extension line" - allows you to add an additional extension line.

Button "Dimension dependent" - allows you to select a size for setting dependencies. The amount of roughness can be set automatically depending on the quality of the specified size. To do this, click on the "Dimension dependent" icon in the "Surface texture" dialog box and select the size with the quality mark.

Button "Arrow type" - allows you to set the appearance of the callout arrow.

Processing switch - controls the display of the processing method: Any manufacturing process permitted, Material should be removed, Material should not be removed.

Character switch "By contour" - controls the display of the symbol "By contour".

Character switch "Surface texture not specified" - controls the display of the symbol "Surface texture not specified".

Character switch "Braked sign" - controls the display of the symbol "Braked sign".

Switch "Set next" - Active when building a roughness symbol. When turned on, the switch goes into the mode of continuous construction of roughness symbols with values equal to the first.
