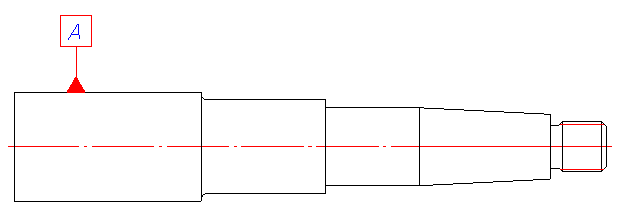

Datum identifier

Main menu: Mechanical - Symbols >Datum identifier.

Ribbon: Mechanical - Symbols >Datum identifier.

Toolbar: Datum identifier (toolbar " Symbols").

Command line: MCDATID.

Procedure

1. Call command;

2. Pick a location point. When you select a base surface, the graphic element is highlighted in green;

3. Indicate the position of the mark. The designation of the base will automatically select a free letter.

Dialog edit

Field "Identifier" - input letter field notation.

Switch "Automatic sorting" - manages auto sort identifier. If the switch is on, the letter is taken automatically from the free and the "Identifier" field is inactive.

Switch "Attach" - allows you to attach the base to the object. To attach the base to the object, you must enable the "Attach" switch, select the anchor object and set the new position of the base character.

Editing with grips

1. Grip Rotate - allows you to rotate the sign left or right 90 degrees.
2. Grip direction of the callout or handle move the base. If the attachment base, the knob moves the entire base relative to the attached object. If the base is detached, then the knob controls the direction of the leader line.
3. Grip disconnection - when using this handle, the base is disconnected from the object.
4. Grip select the type of arrow - allows you to select the type of arrow from the drop-down list.
