Create Transmittal Package

Create Transmit Package

CAD drafting Create Transmittal Package 0      nanoCAD button -CAD software Create Transmittal Package 1 Etransmit

CAD drawing Create Transmittal Package 2      Ribbon: OutputExport > CAD drafting Create Transmittal Package 3 Etransmit

CAD software Create Transmittal Package 4       Menu: File – Etransmit…

CAD drawing Create Transmittal Package 5 Command line: ETRANSMIT

This command forms packages of files for transmitting to other computer (ZIP archive or folder with files) and email a package of files (*.eml file)

In some CAD “set of files” term is used instead “package of files”.

The package automatically or manually includes all files associated with the drawing.

File types included in the package:

·         CAD drafting Create Transmittal Package 6 current drawing file and CAD software Create Transmittal Package 7 attached external links (*.dwg);

·         CAD drawing Create Transmittal Package 8 font files and line type files (*.shx, *.ttf);

·         CAD drafting Create Transmittal Package 9 *.dwf files;

·         CAD software Create Transmittal Package 10 *.dgn files;

·         CAD drawing Create Transmittal Package 11 *.pdf files;

·         CAD drafting Create Transmittal Package 12 raster files, including texture rasters;

·         CAD software Create Transmittal Package 13 point cloud files;

·         CAD drawing Create Transmittal Package 14 3D files.

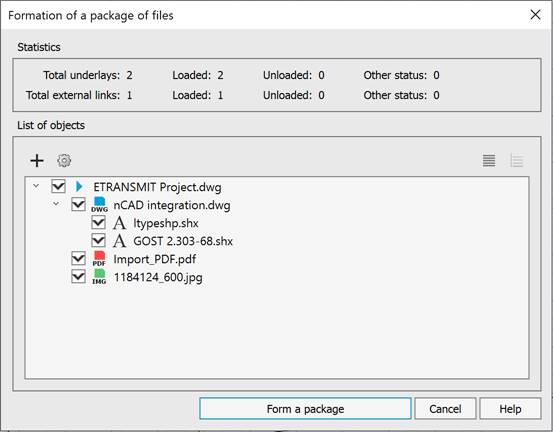

The Formation of a package of files dialog box displays all files referenced by the current drawing in a tree view CAD drafting Create Transmittal Package 15:

CAD software Create Transmittal Package 16

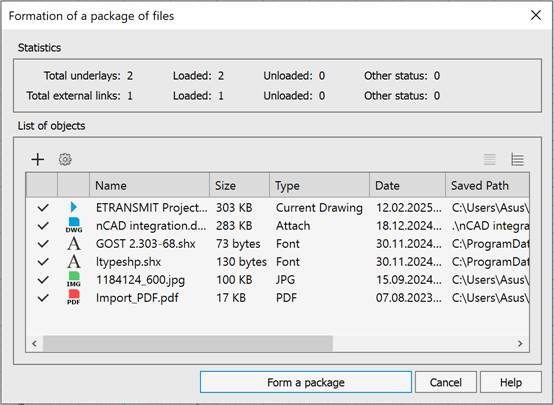

Or in the form of a table CAD drawing Create Transmittal Package 17, which presents information about each file included in the package: (Name, Size, Type, Date, Saved path)

CAD drafting Create Transmittal Package 18



Files marked with CAD software Create Transmittal Package 19 and CAD drawing Create Transmittal Package 20 are included in transmittal package.

At the top of the window, Statistics on loaded and unloaded external links and underlays are displayed.

Buttons:

CAD drafting Create Transmittal Package 21 Adding external files to a package

Opens a standard file open dialog for manual adding a file to a package.  The added files have the CAD software Create Transmittal Package 22 icon.

CAD drawing Create Transmittal Package 23 Open the package creation settings window

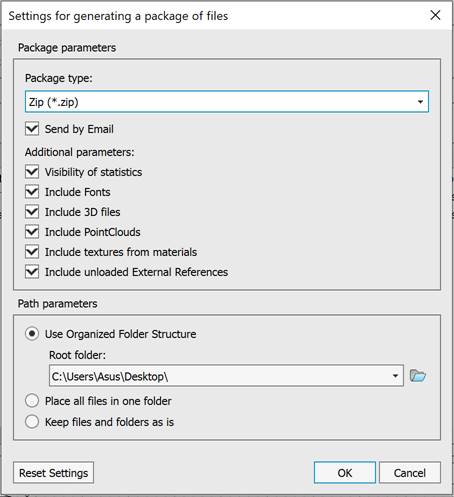

Opens the Settings for generating a package of files dialog box:



CAD drafting Create Transmittal Package 24



Package parameters

Package type:

·         Zip (*.zip) – creates a package of files in the form of a zip archive;

·         Folder with files (not sent by email) – creates a package of files in the form of a folder with files.

Send by Email – enables the mode of generating a *.eml file;

Additional parameters:

·    Visibility of statistics – enables/disables display of the Statistics section in the Formation of a package of files dialog.

·         Include fonts – includes font files in the package (the Fonts folder is created);

·         Include 3D-files – includes 3D-files in the package;

·         Include point clouds – includes point clouds in the package;

·         Include textures from materials – includes texture files created and/or used in the drawing into the package (the Textures folder is created);

Include unloaded External References – includes unloaded external references in the file package.

Path parameters

Use Organized Folder Structure – duplicates the folder structure for files of the generated package, changing absolute paths to relative ones. The root folder is the top-level folder in a hierarchical folder tree.

Place all files in one folder – all files will be placed in one folder.

Keep files and folders as is – the folder structure that existed at the time the package was created is completely preserved.

Rest Settings – restores standard (default) file package creation settings.

Form a package

Starts the formation of a file package (ZIP archive or folder with files).

When the Send by Email mode is enabled, it also creates a file in *.eml format and automatically opens it with the mail client installed on the computer. The generated package (ZIP archive) is attached as an application.

Cancel

Closes the dialog box without saving changes.

To create transmittal package:



1.      Run Etransmit command.

2.      Click the CAD software Create Transmittal Package 25 Settings button and specify the required parameters.

3.      Uncheck the files that should not be included in the package. Multiple selection is possible using the SHIFT and CTRL buttons.

4.      To include additional files, click the Add file… button in the Create Transmittal dialog box, then select files in standard dialog Open.

5.      Click the Form a package button. Specify a file name and locate the folder where you want to create the transmittal package in Save as dialog box.

The generated package of files also includes an information file with the *.txt extension, containing a list of all included and excluded files (including folders), instructions and notes for users.

You can set up Etransmit settings in the Etransmit section of the Options dialog (menu Tools – Options).
