Creating a Group of Geopoints Manually

CAD drafting Creating a Group of Geopoints Manually 0       Ribbon: Topoplan – Geopoints > CAD software Creating a Group of Geopoints Manually 1 Create Groups of Geopoints Manually

CAD drawing Creating a Group of Geopoints Manually 2       Menu: Topoplan – Geopoints > CAD drafting Creating a Group of Geopoints Manually 3 Create Groups of Geopoints Manually

CAD software Creating a Group of Geopoints Manually 4       Toolbar: Geopoints > CAD drawing Creating a Group of Geopoints Manually 5 Create Groups of Geopoints Manually

CAD drafting Creating a Group of Geopoints Manually 6       Command line: C3D_CREATE_COGO_POINT_GROUP

Manual creation of a group of geopoints with a name, description, styles, and a prefix of the raw description of the geopoint, which is a criterion for adding points to the group.

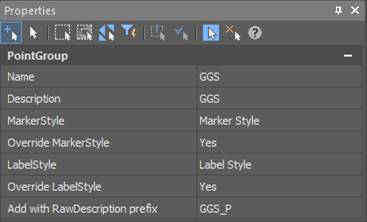

CAD software Creating a Group of Geopoints Manually 7

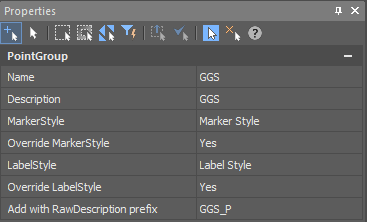

The command options are set in the Properties bar:

·         Name;

·         Description;

·         Marker Style (of those existing in the drawing);

·         Override Marker Style;

·         Label Style (of those existing in the drawing);

·         Override Label Style;

·         Add with Raw Description prefix - the criterion for adding a point to the group. Allows you to add to the group only points with the specified raw description.

Command prompts:

Change parameters in ‘Properties’ window and choose ‘OK’ to create Point Group or ‘Cancel’ to discard any changes <OK> or [OK/Cancel]:

Yes – a group of geopoints will be created with the current settings.

Cancel – if the settings have been changed, they will not be preserved. A group of geopoints will be created with the settings displayed right after the command starts.



↑
